Page 11 - Dixon Cam and Groove Catalog 2013

11

Dixon

877.963.4966

♦

dixonvalve.com

Couplers

Boss-Lock Type C Couplers

Size

356T6

Aluminum

Part #

Brass

Part #

Unplated Iron

Part #

316 SS

Part #

¾" x½"

¾"

1"

1¼"

1½"

2"

2½"

3"

4"

6"

8"

---

AC075

AC100

AC125

AC150

AC200

AC250

AC300

AC400

AC600

AC800

1

---

BC075

BC100

BC125

BC150

BC200

BC250

BC300

BC400

BC600

---

IC075

IC100

---

IC150

IC200

---

IC300

IC400

IC600

---

RC050BL

RC075BL

RC100BL

RC125BL

RC150BLNO

RC200BLNO

---

RC300BL

RC400BLNO

---

1

Dixon and Boss-Lock cam and groove couplings do not interchange in the 8" size.

The 8" Dixon design has 4 cam arms.

female coupler x hose shank

aluminum

Size

¾" x ½"

¾"

1"

1¼"

1½"

2"

2½"

3"

4"

6"

8"

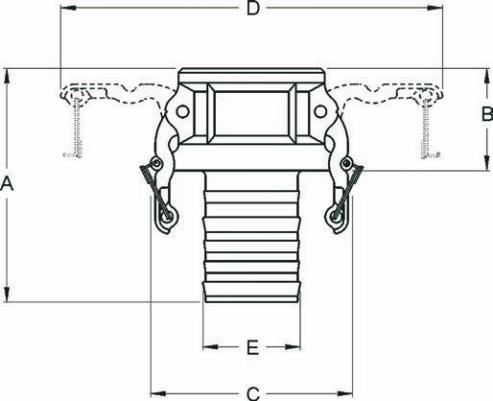

A overall length

---

4-3/8

4-7/8

5-7/16 4-29/32 5-19/32 6-1/16

6-3/16

6½

8-3/8

11-13/16

B coupler length

---

1-13/32 1-17/32 1-29/32 1-31/32 2-7/32

2¼

2-5/8

2-13/16

C distance across safety lugs

---

2-19/32 2-29/32

3-5/8

3-29/32 4-5/16 4-13/16 5-9/16 6-11/16

9-5/8

11-5/8

D distance across open cam arms

---

5-13/32 5-9/16 7-15/32 7-25/32 8-5/32 8-21/32 9-29/32

11

16-5/32 18-5/32

E hose shank OD

---

27/32

1-1/16 1-11/32 1-11/16 2-1/16 2-19/32 3-7/32

4-3/32

6-3/32

8-1/16

3576T6 aluminum, brass and iron dimensions

Size

¾" x ½"

¾"

1"

1¼"

1½"

2"

2½"

3"

4"

6"

8"

A overall length

3-3/32

3-7/8

4-29/32 5-7/16

5½

5-5/16

---

6-15/32

7

---

B adapter length

1-5/8

1-9/32

1-9/16 1-29/32 1-29/32 2-3/16

---

2-9/32

2-5/16

---

C distance across safety lugs

2-25/32 2-25/32 2-29/32

3-5/8

3-29/32 4-5/16

---

5-9/16 6-11/16

---

D distance across open cam arms 5-13/32 5-13/32 5-9/16 7-15/32 7-25/32 8-5/32

---

9-29/32

11

---

E hose shank OD

19/32

27/32

1-1/16 1-11/32 1-19/32 2-3/32

---

3-3/32

4-3/32

---

316 stainless steel dimensions
