Cam and Groove with Straight Thread (NPSM)
Product instruction sheets and technical data, can be viewed on our website at dixonbayco.com, and select the "Resources" Menu

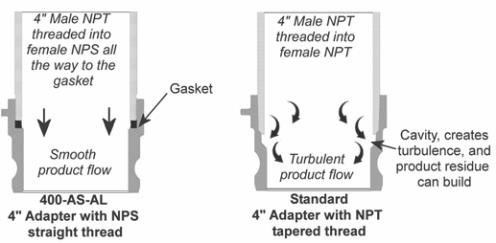

Application: Used to connect dry bulk product hoses. Standard threaded cam and groove fittings have a tapered
thread, which when threaded to another tapered thread, leaves exposed thread within the product
flow path. The cavity left by the exposed thread not only causes product turbulence, but it also is
a place where product can build up. When the Dixon cam and groove with female straight threads
is threaded onto a male tapered thread (NPT), the male tapered thread threads all the way to the
bottom of the thread cavity, creating a smooth product path. This reduces product turbulence and
build-up.
Standards: Interchanges with all product produced to commercial Item description A-A-59326B. Threads are
machined to the NPSM standard.
Materials: Aluminum, cork/buna adapter gasket, buna coupler gasket
Features & Benefits: • No exposed threads within the product flow, reduces product turbulence and product build up.
• Precision machined to rigid tolerances
• Durable stainless steel cam arm pins will not rust or bind, for greater strength and safety
• Recess holds coupler gasket firmly in place - ensures proper placement
400-AS-AL ADS400
Part # Description
400-AS-AL 4" cam and groove adapter with female NPSM (straight thread)
400GAGFI replacement cork/buna thread gasket for 400-AS-AL
ADS400 4" cam and groove coupler with female NPSM (straight thread)
400-G-BU 1 replacement buna coupler gasket for ADS400
1Other material coupler gaskets are available, please contact Dixon.
• Please contact Dixon for other materials and configurations.
