Page 20 - Dixon Bayco Dry Bulk 2013_wm

800.355.1991 18 Dixon Bayco 2013
Products
Dry Bulk
Dry Bulk Products
Bottom Tee Replacement Parts
Part # Description
4x4BD DOOR 4" bottom drop door only
5/6BD DOOR 5" and 6" bottom drop door only
8x4BD DOOR 8" bottom drop door only
4x4-BD GASKET 4" bottom drop door gasket only
5x4-BD GASKET 5" bottom drop door gasket only
6x4-BD GASKET 6" bottom drop door gasket only
8x4-BD GASKET 8" bottom drop door gasket only
4x4BD DOORASBLY 4" bottom drop door assembly with gasket
5x4BD DOORASBLY 5" bottom drop door assembly with gasket
6x4BD DOORASBLY 6" bottom drop door assembly with gasket
8x4BD DOORASBLY 8" bottom drop door assembly with gasket
5x4 WING 5" weld on replacement ring
6x4 WING 6" weld on replacement ring
8x4 WING 8" weld on replacement ring
3/8 T-BOLT 4" bottom drop door T-bolt
3/8 INSERT 4" bottom drop door threaded insert for T-bolt
BD BOLTS 5", 6" and 8" bottom drop door bolt
BD WINGNUT 5", 6" and 8" bottom drop door wing nut
GASKET RETAINER gasket retainer - all sizes
3/8 RETAINERBOLT 3/8" gasket retainer bolt and lock nut - all sizes
5-RF retention flange for low profile tees
Hopper Tees

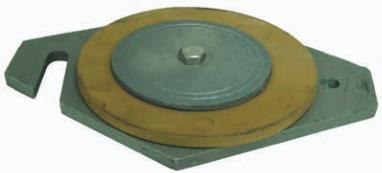

4x4-BDDOORASM
Product instruction sheets and technical data, can be viewed on our website at dixonbayco.com, and select the "Resources" Menu
