Boss Fittings
92
DPL413
877.963.4966 • dixonvalve.com
D
Steam Quick Disconnect Couplings
Applications:
Designed exclusively for steam applications, the coupler and plug are solid brass with stainless steel springs and locking balls.
The coupler has a large plated steel sleeve especially designed for easier gripping with gloves. Two ethylene propylene O-rings
in the coupler and one ethylene propylene O-ring in the plug provide double protection against leaks. Rated to
100 PSI
gauge
saturated steam
(338°F)
.
Warning: Do Not Disconnect Under Pressure!!
poppet valve coupler
poppet valve plug
Body Size Female NPT Size
Part #
Price/E
1/4"
1/4"
B16-200S
$43.61
3/8"
3/8"
B16-300S
46.98
1/2"
1/2"
B16-400S
65.55
3/4"
3/4"
B16-600S
102.63
1"
1"
B16-800S
166.63
1-1/2"
1-1/2"
B16-1200S
446.16
Body Size Female NPT Size
Part #
Price/E
1/4"
1/4"
B17-200S
$13.47
3/8"
3/8"
B17-300S
19.06
1/2"
1/2"
B17-400S
23.95
3/4"
3/4"
B17-600S
42.06
1"
1"
B17-800S
54.99
1-1/2"
1-1/2"
B17-1200S
345.63

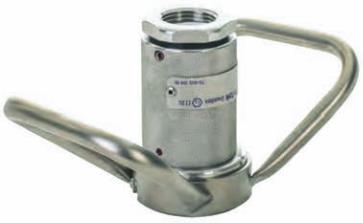

Dry Disconnect Fittings for Steam Service
Female
NPT
Body
Size
Stainless Steel
Part #
Price/E
3/4"
56mm
DDSC075SS
$2956.30
1"
56mm
DDSC100SS
2956.30
coupler
Female
NPT
Body
Size
Stainless Steel
Part #
Price/E
3/4"
56mm
DDSA075SS
$832.10
1"
56mm
DDSA100SS
832.10
adapter
Applications:
Designed to fit hoses carrying steam used in chemical
(heating), pharmaceutical (disinfection and sterilization) and at
loading bays
Materials:
•
coupling house and all inner parts: stainless steel
•
seals: EPDM (standard), other materials available, contact
Dixon
Features:
•
unintentional separation is eliminated preventing accidents
and avoiding unintended down time
•
performance unaffected by surface rust
•
lockable versions are available, contact Dixon
