Technical Information
DPL413
V
877.963.4966 • dixonvalve.com
726
Sanitary Sizing Guide
•
actual size diagrams are provided to eliminate sizing errors when specifying sanitary fittings
•
outside diameters are the same for ½" and ¾" (0.992 OD) and 1" and 1½" (1.984 OD)
•
sizes 2" and above have specific outside diameter dimensions
•
Diagrams are not available for 3" and above, reference the table below for information
½" mini
¾" mini

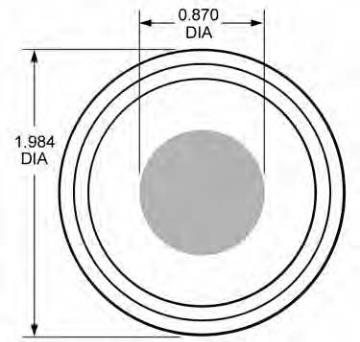

1"

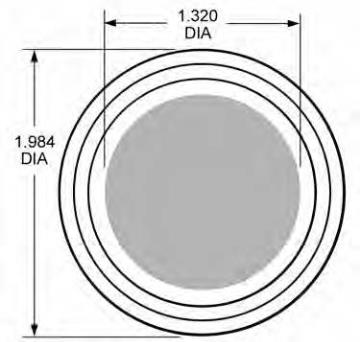

1½"

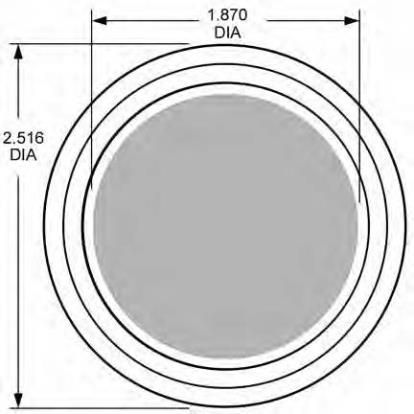

2"

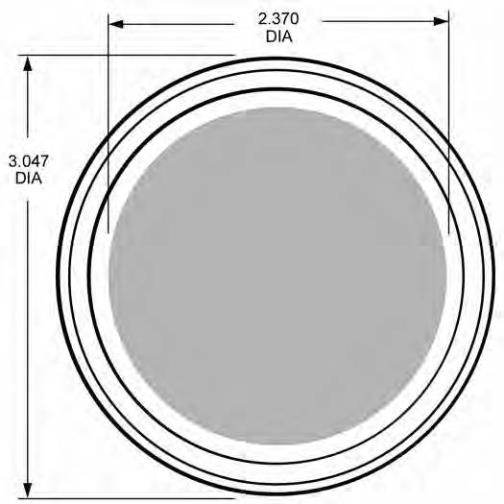

2½"
Sanitary Size
OD of clamp end
ID of fitting
Sanitary Size
OD of clamp end
ID of fitting
½"
0.992
0.370
3"
3.579
2.870
¾"
0.992
0.620
4"
4.682
3.834
1"
1.984
0.870
6"
6.562
5.782
1½"
1.984
1.320
8"
8.602
7.760
2"
2.516
1.870
10"
10.570
9.782
2½"
3.047
2.370
12"
12.570
11.760
