Fire Fittings
DPL413
O
877.963.4966 • dixonvalve.com 570

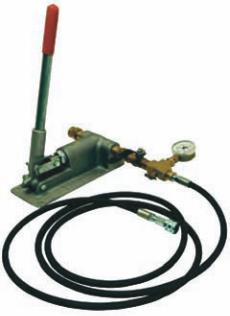

Hand Hydrotest Pump
NPT Inlet NPT Outlet Part # Wt.
Lbs. Price/E
½" ½" HHTP 7 $1946.00
Application:
•designed for use in testing pipe lines, pressure tanks and pressure vessels
Features:
• stainless steel piston with aluminum body
•uses check valves which are more efficient and longer lasting than old poppet system
•cylinder displacement: 1.37 cu. in.
• 0 -1000 PSI pressure gauge, 10' high pressure hose and quick disconnect coupler included
• piston: 7/8" with 2" stroke
• working pressure: 1000 PSI
Steel Hose Cabinet
Application:
•Used for storage of industrial fire protection equipment. The cabinet is designed for use on
walls with or without legs, or free standing.
Features:
•red polyester coated finish on heavy 18-gauge steel
• FM approved
• does not come with hose or accessories
•accessory hardware is required but is not included
•furnished without legs - if legs are required, call for pricing
• concrete base is to be supplied by a contractor
•supplied with holes in the back for wall mounting and 1" pipe couplings on the bottom for
adding 1" x 18" pipe legs (part #HC30143-PL)
width depth height
60" 15" 48"
Dimensions
Steel
Part #
Powhatan
Part # Price/E
HC30143 30-143-00001 $2025.00
