Bio-Pharmaceutical Fittings (BPE)
N
485 DPL113 877.963.4966 • dixonvalve.com 4
Product markings per ASME BPE 2012 DT-10.1
High Purity BioPharm Fittings
Specifications
Packaging
• All fittings are manufactured to meet the latest edition of the ASME BPE International Standard, Bioprocessing Equipment.
• 316L stainless steel material and dimensions meet all orbital welding specifications with controlled sulphur.
Markets
• pharmaceutical
• bioprocessing
• semiconductor
• cosmetics
• food processing
• beverage
Per the specification, the size of the fitting may limit the space available for markings. When this occurs, the markings starting at
the bottom of the list are not applied. The Bradford™ part number will describe the part configuration and size.

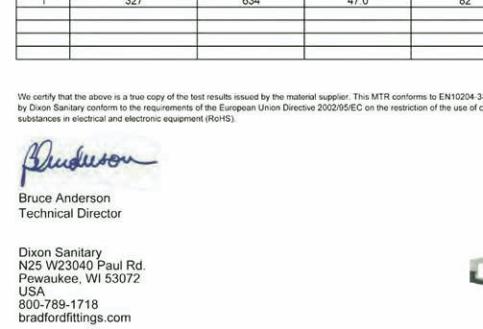

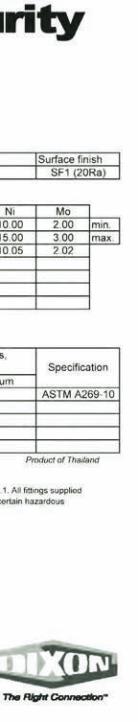

MTR (material test report) certifications are included inside the resealable bag with each fitting. The MTRs are traceable through
the Job Number found on each fitting. All fittings are capped to prevent damage and contamination.
For easy identification each finish will have a different color cap.
PL finish - SF1...blue caps
PM finish - SF4...white caps
• Job number
• 316L
• Bradford™ part number
• Heat number(s)
• Surface finish code
• ASME BPE
Material test reports
are also available
from the Dixon
Sanitary website
(bradfordfittings.com);
just enter the job
number located on
each fitting.
