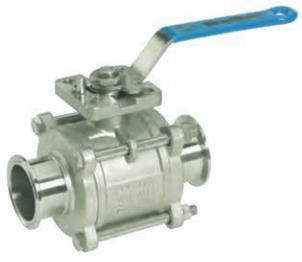

2-Way 3 Piece Encapsulated Ball Valves
Features:
•
½" - 2" rated at
1,000 PSI
WOG; 2½" - 4" rated at 800 PSI
WOG
•
balanced encapsulated construction minimizes cold flow
•
live-loaded stem packing
•
precision stainless steel balls reduce torque and friction
losses while extending seat life
•
integral ISO 5211 mounting pad
•
ID polish is Ra 32 minimum
•
lockable handle can prevent accidental actuation
•
standard internal entry blow out proof stem design
•
full port design matches ball and seat ports to tube ID for
lower pressure drop and less turbulent flow
•
compact design for areas with tight space restrictions
•
fully encapsulated construction produces bubble tight seal
•
identification tagging available
•
virgin PTFE seats
•
repair kits available
•
for valve seat options, call Dixon Sanitary at 800.789.1718
Literature download for Valve Seat Options
Size
Dimensions
316 Stainless Steel
A
B
C
D
E
Part #
Price/E
½"
4.9
1.5
4.3
3.0
1.9
BV2CV-050CC-A
$164.90
¾"
4.9
1.8
4.7
3.3
2.2
BV2CV-075CC-A
199.15
1"
5.6
2.1
4.9
3.6
2.4
BV2CV-100CC-A
261.10
1½"
9.5
2.7
5.6
4.4
3.1
BV2CV-150CC-A
440.40
2"
9.5
3.1
6.4
4.8
3.7
BV2CV-200CC-A
637.10
2½"
18.0
3.8
7.8
5.2
4.8
BV2CV-250CC-A
1285.20
3"
18.0
4.2
9.0
5.7
5.4
BV2CV-300CC-A
1696.50
4"
18.0
5.3
9.5
6.8
8.8
BV2CV-400CC-A
2914.80
Dixon Sanitary's commitment to excellence and continuous research and development for improving product quality may warrant periodic changes in design
and specification. We reserve the right to modify product design without prior notification and without incurring any liability to provide these modifications to
products previously purchased.
