Sanitary Fittings
DPL113
M
4 877.963.4966 • dixonvalve.com 470
Filters / Strainers
In-line Filter / Strainer - BSCCQ
Size A
short
A
long B
Short -
316L Stainless Steel
Part #
Price/E
Long
316L Stainless Steel
Part #
Price/E
1" 15.75 -- 4.00 BSCCQ1-R100 $1407.05 --- ---
1½" 15.75 35.375 4.00 BSCCQ1-R150 1407.05 BSCCQ2-R150 $2488.10
2" 15.75 35.375 4.00 BSCCQ1-R200 1407.05 BSCCQ2-R200 2488.10
2½" 15.75 -- 4.50 BSCCS1-R250 1660.75 --- ---
3" 15.75 35.375 4.50 BSCCS1-R300 1660.75 BSCCS2-R300 3040.30
Features:
• must be vertical mount to be 3A
• bevel seat, I-line and weld ends available, call Dixon Sanitary at 800.789.1718 for information
• in-line units ship standard with the following: spring, distributor cap, clamp gasket, 1/4" perforated back-up tube, inlet and
outlet bodies and squeeze clamp
• 1/8" perforated back-up tube available, must specify when ordering (not 3A)
Size A B C D 316L Stainless Steel
Part # Price/E
1½" 41.90 4.00 35.00 3.50 BSCCQ3-R150 $3227.80
2" 41.90 4.00 35.00 3.50 BSCCQ3-R200 3227.80
3" 41.90 4.50 35.00 3.75 BSCCQ3-R300 3975.20
Features:
• serviceable without removing from the line
• must be a vertical mount to be 3A
• Side entry units ship standard with the following: spring, end cap with handle, distributor cap, clamp gasket, 1/4" perforated
back-up tube, body and squeeze clamp
• 1/8" perforated back-up tube available, must specify when ordering (not 3A)
• Bevel seat, I-line and weld ends available, call Dixon Sanitary at 800.789.1718 for information
D
A
C
B

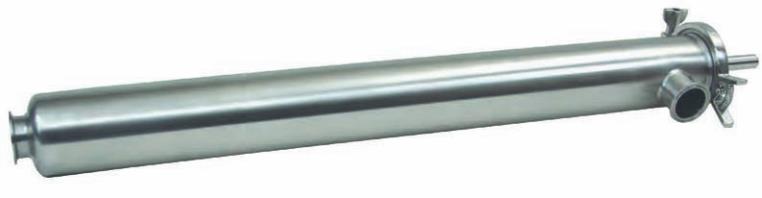

Side-Entry Filter / Strainer - BSCCQ
