Stationary Spray Balls - STC
Spray Balls
Technical Data
Repair Kits
Repair kit contains:
(1) pin
(1) R clip
Features:
• 316L stainless steel
• heavy stainless steel construction provides longer life
• various spray patterns available (blanks available as special
order)
• stationary - designed to be mounted to a tube or pipe
• 2 mm spray holes
360° Pattern 180° Bottom Pattern 180° Top Pattern
D D D
A
B
C
A
B
C
A
B
C E E E
Size Pin
Length
Spray
Pattern
Dimensions Pin
Size
316L Stainless Steel
A B C D E Part # Price/E
1" 1.47 360° 3.04 2.95 1.005 .975 .445 .226 STC-360-R100 $118.30
1½" 1.95 360° 3.54 2.95 1.505 .975 .445 .226 STC-360-R150 182.45
1" 1.47 180° bottom 3.54 2.95 1.005 .975 .445 .226 STC-180B-R100 120.40
1½" 1.95 180° bottom 3.54 2.95 1.505 .975 .445 .226 STC-180B-R150 171.95
1" 1.47 180° top 3.54 2.95 1.005 .975 .445 .226 STC-180T-R100 120.40
1½" 1.95 180° top 3.54 2.95 1.505 .975 .445 .226 STC-180T-R150 171.95
Size Part # Price/E
1" STC-RK100 $8.65
1½" STC-RK150 8.85
Application:
• typical use is in food and beverage industries for cleaning storage tanks

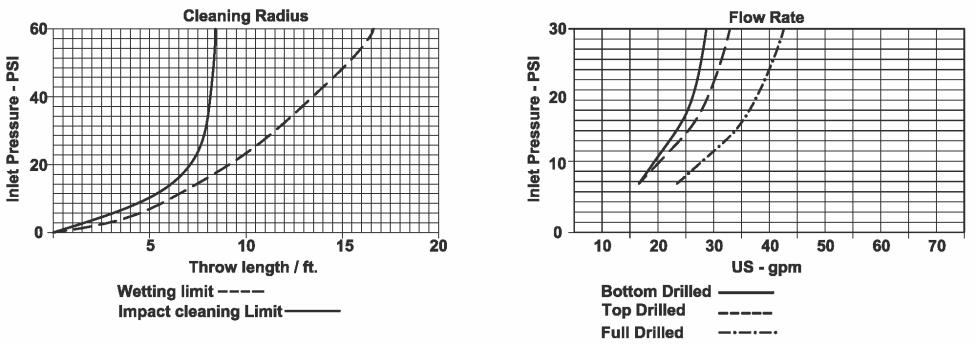

Cleaning Radius Flow Rate
