Replacement Washers
Permanent Couplings for Pump Hose
Applications:
• Economical and trouble-free couplings for gas pump hose.
Features:
• Serrations on the stem become imbedded in the hose eliminating wicking and leakage. The shell extends beyond the stem to
prevent cutting of interior walls. Tapered ends of stem and shell protect hose when flexed.
• Couplings provide tamper-proof static connection which cannot be broken without completely damaging coupling and hose.
• internal expansion of stem to nominal ID of hose provides full flow
• Broad, firm grip of coupling extends hose life by making it possible for hose to withstand more flexings.
• Hand and electrically operated installation equipment is available. Consult factory for pricing and availability.
Reattach static wire if required.

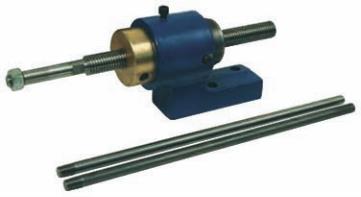

HB Coupling Expander Machine
Features:
• hand operated, pull-through type expander
• for use in a fixed location for small production runs or as a portable repair type expander
• attaches sizes ¾" through 2" of the 520-H Series couplings, and all sizes of 570-H and 580-H Series couplings
• expander tooling sold separately
Feature:
• Replacement washers for 520-H series female internally
expanded permanent couplings are on pages 405 and 406.
Size Buna
Part # Price/E
¾" H5071-BU $1.20
1" H5072-BU 1.20
1¼" H5073-BU 1.20
1½" H5074-BU 1.20
2" H5075-BU 1.30
2½" H5076-BU 1.30
3" H5077-BU 1.35
4" H5078-BU 1.80
1 thrust plate required 25000HTL15
Hose
ID
Male
NPT
Hose
OD
Chrome Plated Brass
Part # Price/E
5/8" 3/4" 1" H5741 $14.70
5/8" 3/4" 1-1/32" H5742 14.70
3/4" 3/4" 1-9/64" H5751 16.60
3/4" 3/4" 1-11/64" H5752 16.60
3/4" 3/4" 1-13/64" H5753 27.10
3/4" 3/4" 1-7/32" H5754 27.10
3/4" 3/4" 1-17/64" H5755 1 27.10
1" 1" 1-25/64" H5771 30.50
1" 1" 1-29/64" H5772 30.50
1" 1" 1-1/2" H5773 30.50
1" 1" 1-9/16" H5774 30.50
Part # Price/E
2500HB0000 $3180.00
