Holedall Fittings
DPL413
L
877.963.4966 • dixonvalve.com 402

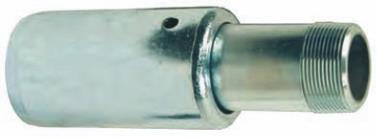

External Swage High Pressure Couplings
Holedall Internal Expansion Couplings
Stem and Ferrule Complete Assemblies
Applications:
These couplings are for services requiring a fitting which will withstand extremely high pressures (up to 3,000 PSI at 70°F) and
severe operating conditions, such as on small and medium size drilling rigs, used for slim hole, core drill, workover, seismograph,
water well, blast or shot holes, etc. These long, rugged fittings are machined from seamless pipe and tubing with specially
designed serrations. The mating ferrules are machined from heavy wall material incorporating matching serrations. These
couplings are shipped with matching ferrules. Please provide hose OD when ordering for properly sized ferrule. Make sure both
ends of the hose are measured for OD. Must be swaged with 50 Ton or 100 Ton Ram.
Applications:
The Dixon Internally Expanded Couplings are essential when maximum flow is important. Only one expansion tool is needed for
each hose ID. Some recommended applications of these fittings are: concrete pump hose, plaster and grout hose, oil suction
and discharge hose, multi-purpose heavy duty air hose, jetting hose, barge loading hose and bottom loading hose.
Features:
Benefits of Internal Expansion Fittings:
• maximum flow of media
• reduction of turbulence through hose
• excellent sealing and retention characteristics
• outperforms band clamps
• easy and consistent installation
End Configurations Available:
• male NPT
• raised end (California style)
• grooved
• others available on request
Cross-section of Holedall internally expanded assembly
Features:
• The LM fittings are sold as a complete coupling, including stem and ferrule.
• API and NPT sizes are interchangeable
excellent hose retention ferrule stem
hose ID
Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system.
Due to differences in dimensions and tolerances, for safety reasons, do not use other
manufacturer's stems or ferrules with Dixon Holedall products.
Male API Thread Coupling Units
Male NPT Thread Coupling Units
Hose ID NPT Size Zinc Plated Steel
Part # Price/E
2" 2" LM32-* $335.00
2½" 2½" LM40-* 390.00
3" 3" LM48-* 435.00
Hose ID API Size Zinc Plated Steel
Part # Price/E
2" 2½" LM3240- * POR
2½" 3" LM4048- * POR
3" 4" LM4864- * POR
*an accurate hose OD must be provided to complete the part
# and to ensure proper retention.
