Brass Fittings
H
323 DPL413 877.963.4966 • dixonvalve.com
Manually - Operated Brass Ferrule Crimper

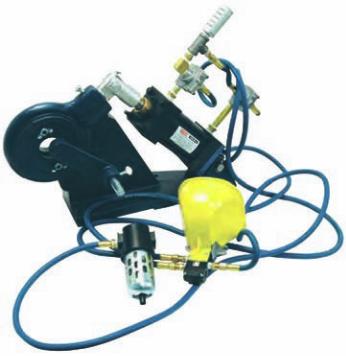

Air - Operated Brass Ferrule Crimper
Die sizes for ferrules and machine numbers 1765A and 5111A on page 322.
Application:
Crimps all brass ferrules shown on previous page.
Features:
• Dies for ferrule machines are available in standard sets for
all ferrules as tabulated (4 segments to a set).
• Dies are supplied with plain or ribbed crimping surface.
• does not include dies
• height: with handle upright 27"
• base: 8" x 3"
• body: 7-3/8"
• weight: 25 lbs.
Part # Price/E
5111A $1805.00
Application:
For the efficient mass production assembly of hose, ferrules,
and fittings.
Features:
• The foot pedal permits the use of both hands, reduces
fatigue and speeds production.
• complete with air cylinder, ferrule machine (less dies), fitted
hose lengths and necessary control valves
• ready for work bench installation
• crimps all brass ferrules shown on page 328
• weight: 91 lbs.
Part # Price/E
1765A $8250.00
