Garden Hose & Washdown Accessories
G
DPL413 877.963.4966 • dixonvalve.com 292
Water-Steam Washdown Station
Fail-safe mixing station, bronze, wall mounted, safely blends steam and cold water for hot water on demand. Should cold water
fail, the steam is instantly shut-off. 150 PSI maximum, 200°F maximum.
station is not supplied with hose and nozzle

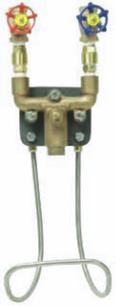

Hot and Cold Water Mixing Station
Rack for Mixing Station
Hot Water Washdown Hose
Steam Pressure Water Pressure
Minimum
80 PSI
Maximum
150 PSI
Minimum
50 PSI
Maximum
80 PSI
Pressure Requirements
• control valves
• dial thermometer
• in-line check valves
• ¾" inlet and outlet
• stainless steel hose rack
• mounting plate and
hardware
Features:
Part # Price/E
SWDS $3456.75
Hot and cold water mixing station, bronze, wall mounted.
150 PSI maximum, 200°F maximum.
• control valves (globe style)
• in-line check valves
• ¾" inlet and outlet
• stainless steel hose rack
• mounting plate and hardware
Features:
Part # Price/E
WDS1 $1244.80
Application:
Designed to hold 50' of ¾" heavy duty industrial grade hose.
Features:
• heavy duty stainless steel construction
• stainless steel lag screws
• heavy duty solid brass mounting crowns
• supplied with mounting hardware
• rack fits SWDS and WDS1 mixing stations
Part # Price/E
WDSR $211.20
Features:
• smooth extruded Chlorobutyl
tube
• white, wrapped Neoprene
cover (.075" thick), braided
textile reinforcement
• furnished with internal
stainless steel spring
guards at both ends
• ¾" male on one end and
½" male on the other
• working pressure: 250 PSI
• temperature to: 200°F
Size Part # Price/E
5/8" x 25' SWDSHOSE25 $755.25
5/8" x 50' SWDSHOSE50 1275.50
station is not supplied with hose and nozzle
