Cam & Groove Fittings
22 DPL413 877.963.4966 • dixonvalve.com
B
Dixon
Boss-Lock
Features:
• precision machined to rigid tolerances
• durable stainless steel cam arm pins will not rust or bind, providing greater strength
and safety
• recess holds gasket firmly in place - ensures proper placement
• long shank design allows proper banding, thus eliminating the major cause of hose
damage
Features:
•The cast-in lugs allow safety clips to be attached once the lugs are passed through slots
in the special cam lever arms providing a patented safety feature. The clips prevent the
coupler from being unlocked until they are removed, providing a positive locking action.
•Boss-Lock investment stainless steel cam arms are guaranteed! Should you break a
Boss-Lock investment stainless steel cam arm, return it to the nearest warehouse for a
free replacement.

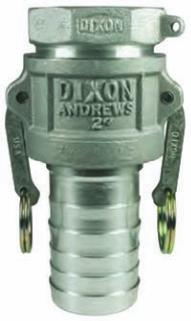

•The pull ring safety clip simplifies the locking action on Boss-Lock couplers. No more
inserting clips or dangling lanyards, just a twist and it's locked, giving you a low profile
positive locking action.
pull ring safety clip

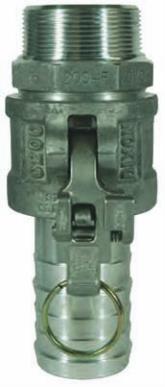

EZ Boss-Lock
Features:
• No more fumbling with clamps, wire, clips or pins, just close the handles and the locking
mechanism is engaged.
• Extremely easy to open, the release lever is under your thumb when you want to open the
fitting, ergonomic.
• Resistant to accidental disconnection when being dragged. The release lever opens in
the direction opposite to the cam arm, so movements that tend to open the release lever
also tend to close the cam arm.
• If the rotating lever is not flush with the handle, it is not properly engaged.
• no sliding pins to jam or pop open
• rotating action helps keep the locking device free of debris
• designed to protect critical parts from impact and to withstand rugged use
• The EZ Boss-Lock can be supplied with special shanks custom suited to your needs and
is also available with swaged and PF shank designs for hard to couple chemical hoses.
• assemblies are made of investment cast stainless steel with plated carbon steel pull rings
• easy to insert into the hose tubes on tank trucks and easy to use in restricted spaces due
to the smaller maximum OD and a more snag free exterior
• assemblies can be retrofitted onto undamaged stainless steel Boss-Lock allowing you to
protect your investment in stainless steel Boss-Lock couplings while you upgrade.
• Made in the USA.
