Air Fittings
175 DPL413 877.963.4966 • dixonvalve.com
E

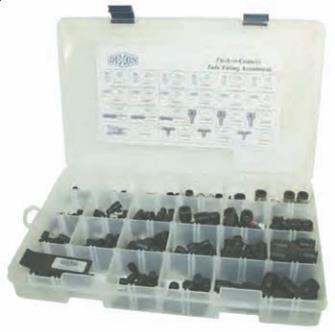

Push-In Fitting Kit
Kit includes plastic case with threaded connectors, threaded elbows and several tube to tube connector configurations found on
pages 172-174. A tubing cutter is also included in the kit.

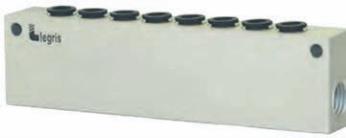

Legris Modular Manifolds
manifold with push-to-connect ports
Kit contains the following parts:
Part # Price/E
TFK $1082.60
Part # Qty Description
31755311 10 tube to male NPT connector
31750411 10 tube to male NPT connector
31755611 10 tube to male NPT connector
31755614 10 tube to male NPT connector
31756014 5 tube to male NPT connector
31756018 5 tube to male NPT connector
31090411 10 tube to male NPT elbow
31095611 10 tube to male NPT elbow
31095614 10 tube to male NPT elbow
31096011 5 tube to male NPT elbow
31096014 5 tube to male NPT elbow
31096018 5 tube to male NPT elbow
31060400 10 tube to tube union
31065600 10 tube to tube union
31066000 5 tube to tube union
31400400 10 Y connector
31405600 10 Y connector
31406000 5 Y connector
31040400 10 tube to tube union tee
31045600 5 tube to tube union tee
31046000 5 tube to tube union tee
30007100 1 tubing cutter
OD NPT Size Number of Outlets A B C D E Part # Price/E
5/32" 1/4" 8 .55 1.30 4.49 4.09 .45 33150414 $97.90
1/4" 1/4" 8 .55 1.30 4.92 4.53 .50 33155614 103.10
3/8" 3/8" 6 --- 1.57 5.73 5.33 .67 33156018 116.10
