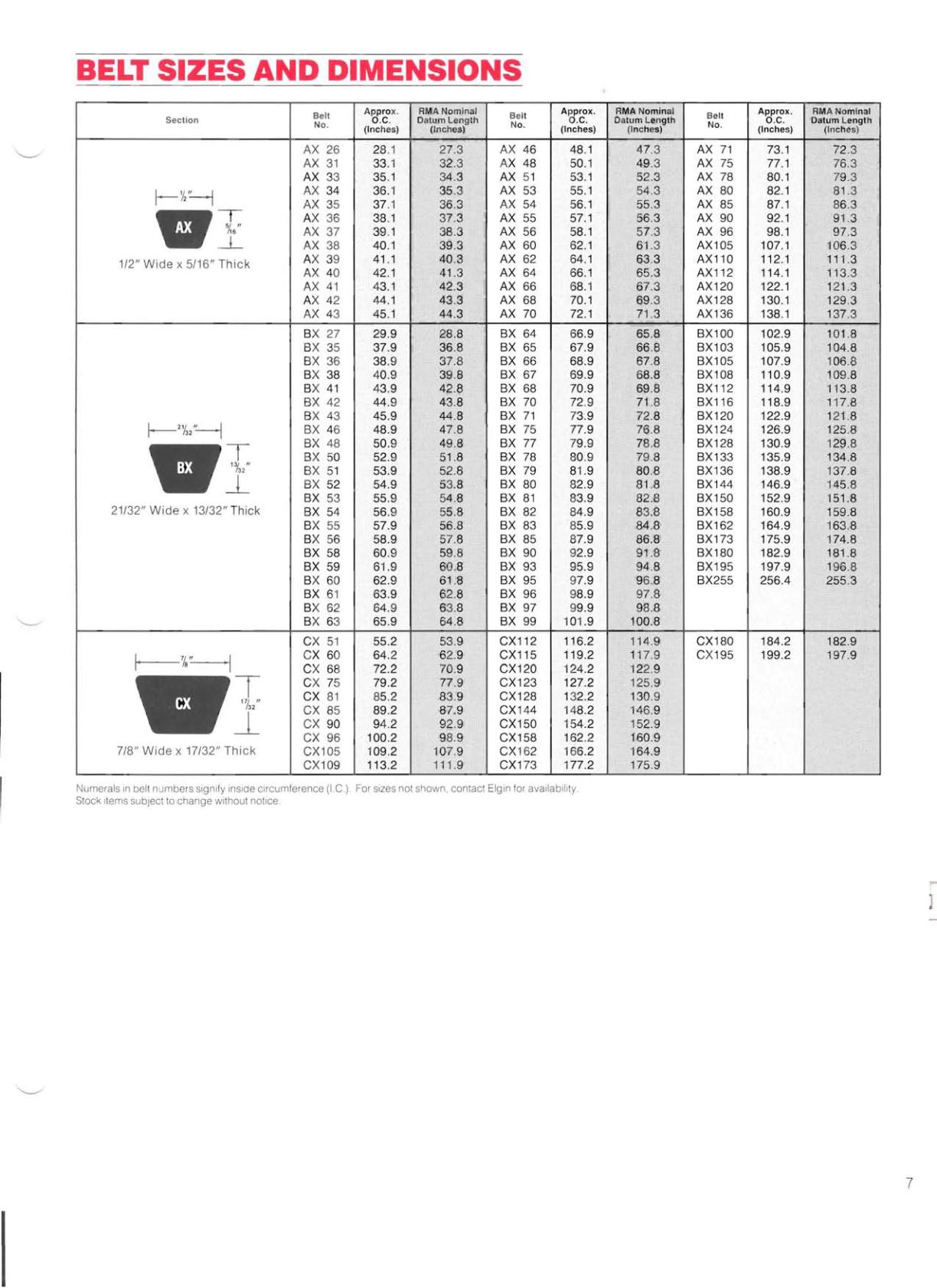

BELT SIZES AND DIMENSIONS
Section
Belt
No.
Approx.
D.C.
(Inches)
RM'A Nominal
Datum Length
(Inche_s)
Belt
No.
Approx.
D.C.
(Inches)
RMANominal
Datum Length
(Inches)
Belt
No.
Approx.
D.C.
(Inches)
RMANominal
Datum Length
(Inches)
AX 26
28.1
27.3
AX 46
48.1
47.3
AX 71
73.1
72.3
AX 31
33.1
32.3
AX 48
50.1
49.3
AX 75
77.1
76.3
AX 33
35.1
34.3
AX 51
53.1
52.3
AX 78
80.1
79.3
f- '/,''----]
VI
AX 34
AX 35
AX 36
AX 37
AX 38
36.1
37.1
38.1
39.1
40.1
35.3
I
36.3
37.3
38.3
39.3
AX 53
AX 54
AX 55
AX 56
AX 60
55.1
56.1
57.1
58.1
62.1
54.3
55.3
56.3
57.3
61.3
AX 80
AX 85
AX 90
AX 96
AX105
82.1
87.1
92.1
98.1
107.1
81.3
86.3
91.3
97.3
106.3
1/2" Wide x 5/16" Thick
AX 39
AX 40
41.1
42.1
40.3
41.3
AX 62
AX 64
64.1
66.1
63.3
65.3
AX110
AX112
112.1
114.1
111.3
113.3
AX 41
43.1
42.3
AX 66
68.1
67.3
AX120
122.1
121.3
AX 42
44.1
43.3
AX 68
70.1
69.3
AX128
130.1
129.3
AX 43
45.1
44.3
AX 70
72.1
71.3
AX136
138.1
137.3
I-'y,,''---l
WI
•
32
-.L
21/32" Wide x 13/32" Thick
BX 27
BX 35
BX 36
BX 38
BX 41
BX 42
BX 43
BX 46
BX 48
BX 50
BX 51
BX 52
BX 53
BX 54
BX 55
BX 56
BX 58
BX 59
BX 60
BX 61
BX 62
BX 63
29.9
37.9
38.9
40.9
43.9
44.9
45.9
48.9
50.9
52.9
53.9
54.9
55.9
56.9
57.9
58.9
60.9
61.9
62.9
63.9
64.9
65.9
28.8
36.8
37.8
39.8
42.8
43.8
44.8
47.8
49.8
5.1.8
52.8
53.8
54.8
55.8
56.8
57.8
59.8
60-8
61<8'
62.8
63.8
64.8
BX 64
BX 65
BX 66
BX 67
BX 68
BX 70
BX 71
BX 75
BX 77
BX 78
BX 79
BX 80
BX 81
BX 82
BX 83
BX 85
BX 90
BX 93
BX 95
BX 96
BX 97
BX 99
66.9
67.9
68.9
69.9
70.9
72.9
73.9
77.9
79.9
80.9
81.9
82.9
83.9
84.9
85.9
87.9
92.9
95.9
97.9
98.9
99.9
101.9
65.8
66.8
67.8
68.8
69.8
71.8
72.8
76.8
78.8
79.8
80.8
81.8
82.8
83.8
84.8
86.8
91.8
94.8
96,8
97.8
98.8
100.8
BX100
BX103
BX105
BX108
BX112
BX116
BX120
BX124
BX128
BX133
BX136
BX144
BX150
BX158
BX162
BX173
BX180
BX195
BX255
102.9
105.9
107.9
110.9
114.9
118.9
122.9
126.9
130.9
135.9
138.9
146.9
152.9
160.9
164.9
175.9
182.9
197.9
256.4
101.8
104.8
106.8
109.8
113.8
117.8
121.8
125.8
129.8
134.8
137.8
145.8
151.8
159.8
163.8
174.8
181.8
196.8
255.3
ex 51
55.2
53.9
eX112
116.2
114.9
eX180
184.2
182.9
f-----7/8~
ex 60
ex 68
64.2
72.2
62.9
70.9
eX115
eX120
119.2
124.2
117.9
122.9
eX195
199.2
197.9
WI
ex 75
ex 81
ex 85
ex 90
ex 96
79.2
85.2
89.2
94.2
100.2
77.9
83.9
87.9
92.9
98.9
eX123
eX128
eX144
eX150
eX158
127.2
132.2
148.2
154.2
162.2
125.9
130.9
146.9
152.9
160.9
7/8" Wide x 17/32" Thick
eX105
109.2
107.9
eX162
166.2
164.9
eX109
113.2
111.9
eX173
177.2
175.9
Numerals In belt numbers signify Inside Circumference
(I.e.)
For sizes not shown, contact Elgin for availability.
Stock Items subject to change Without notice
7
