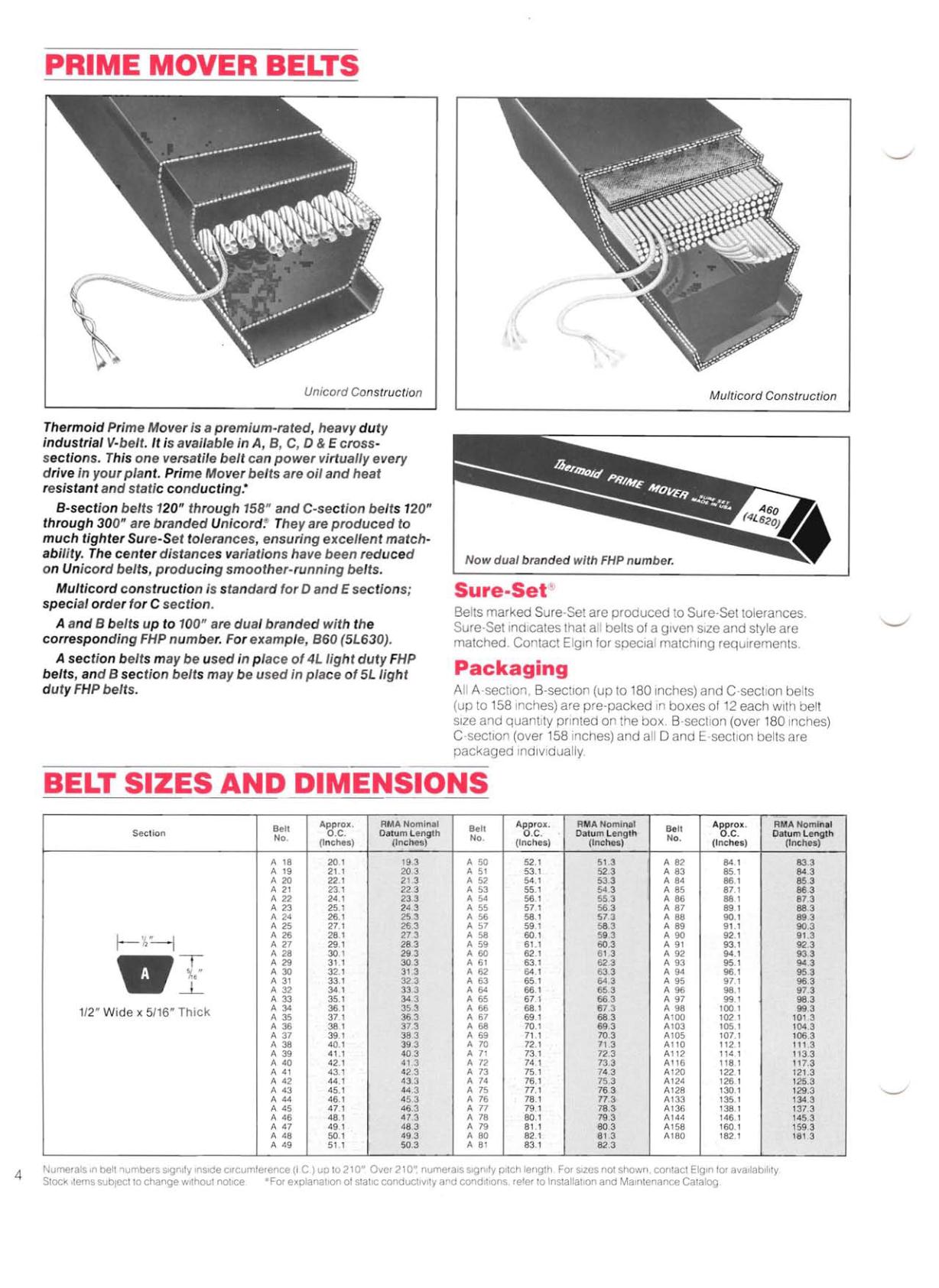

Page 4 - ThermoidPowerTransnmissionBeltsBrochure(HBDTHE-18770)

PRIME MOVER BELTS
Unicord Construction
Thermoid Prime Mover is a premium-rated, heavy duty
industrial V-belt. It is available in A, 8, C, D & E cross­
sections. This one versatile belt can power virtually every
drive in your plant. Prime Mover belts are oil and heat
resistant and static conducting:
8-section belts 120" through 158" and C-section belts 120"
through 300" are branded Unicord~ They are produced to
much tighter Sure-Set tolerances, ensuring excellent match­
ability. The center distances variations have been reduced
on Unicord belts, producing smoother-running belts.
Multicord construction is standard for D and E sections;
special order for C section.
A and 8 belts up to 100" are dual branded with the
corresponding FHP number. For example, 860 (5L630).
A section belts may be used in place of 4L light duty FHP
belts, and 8 section belts may be used in place of 5L light
duty FHP belts.
Mutticord Construction
Now dual branded with FHP number.
Sure-Set®
Belts marked Sure-Se are produced to Sure-Set tolerances.
Sure-Set indicates that all belts of a given size and style are
matched. Contact Elgin for special matching requirements.
Packaging
All A-section, B-section (up to 180 inches) and C-section belts
(up to 158 inches) are pre-packed in boxes of 12 each with belt
size and quantity printed on the box. B-section (over 180 Inches)
C-section (over 158 inches) and all 0 and E-section belts are
packaged individually
BELT SIZES AND DIMENSIONS
Section Belt
No.
Approx.
D.C.
(Inches)
RMA Nominal
Datum Length
(Inches)
Belt
No.
Approx.
D.C.
(Inches)
RMANominal
Datum Length
(Inches)
Belt
No.
Approx.
D.C.
(Inches)
RMANominal
Datum Length
(Inches)
A 18 20.1 19.3 A 50 52.1 51.3 A 82 84.1 83.3
A 19 21.1 20.3 A 51 53.1 52.3 A 83 85.1 84.3
A 20 22.1 21.3 A 52 54.1 53.3 A 84 86.1 85.3
A 21 23.1 22.3 A 53 55.1 54.3 A 85 87.1 86.3
A 22 24.1 23.3 A 54 56.1 55.3 A 86 88.1 87.3
A 23 25.1 24.3 A 55 57.1 56.3 A 87 89.1 88.3
A 24 26.1 25.3 A 56 58.1 57.3 A 88 90.1 89.3
A 25 27.1 26.3 A 57 59.1 58.3 A 89 91.1 90.3
f-Y2'~ A 26
A 27
28.1
29.1
27.3
28.3
A 58
A 59
60.1
61.1
59.3
60.3
A 90
A 91
92.1
93.1
91.3
92.3
Wi A 28
A 29
A 30
A 31
A 32
30.1
31.1
32.1
33.1
34.1
29.3
30.3
31.3
32.3
33.3
A 60
A 61
A 62
A 63
A 64
62.1
63.1
64.1
65.1
66.1
61.3
62.3
63.3
64.3
65.3
A 92
A 93
A 94
A 95
A 96
94.1
95.1
96.1
97.1
98.1
93.3
94.3
95.3
96.3
97.3
A 33 35.1 34.3 A 65 67.1 66.3 A 97 99.1 98.3
1/2" Wide x 5/16" Thick A 34
A 35
36.1
37.1
35.3
36.3
A 66
A 67
68.1
69.1
67.3
68.3
A 98
Al00
100.1
102.1
99.3
101.3
A 36 38.1 37.3 A 68 70.1 69.3 Al03 105.1 104.3
A 37 39.1 38.3 A 69 71.1 70.3 Al05 107.1 106.3
A 38 40.1 39.3 A 70 72.1 71.3 A110 112.1 111.3
A 39 41.1 40.3 A 71 73.1 72.3 A112 114.1 113.3
A 40 42.1 41.3 A 72 74.1 73.3 A116 118.1 117.3
A 41 43.1 42.3 A 73 75.1 74.3 A120 122.1 121.3
A 42 44.1 43.3 A 74 76.1 75.3 A124 126.1 125.3
A 43 45.1 44.3 A 75 n.1 76.3 A128 130.1 129.3
A 44 46.1 45.3 A 76 78.1 77.3 A133 135.1 134.3
A 45 47.1 46.3 An 79.1 78.3 A136 138.1 137.3
A 46 48.1 47.3 A 78 80.1 79.3 A144 146.1 145.3
A 47 49.1 48.3 A 79 81.1 80.3 A158 160.1 159.3
A 48 50.1 49.3 A 80 82.1 81.3 A180 182.1 181.3
A 49 51.1 50.3 A 81 83.1 82.3
Numerals In belt numbers Signify Inside circumference (I C) up 10 210" Over 210': numerals signify Pilch length. For sizes not shown. contact Elgin for availabilily.
Stock Items subject to change without nolice 'For explanation of static conductivity and conditions. refer to Installation and Maintenance Catalog. 4
