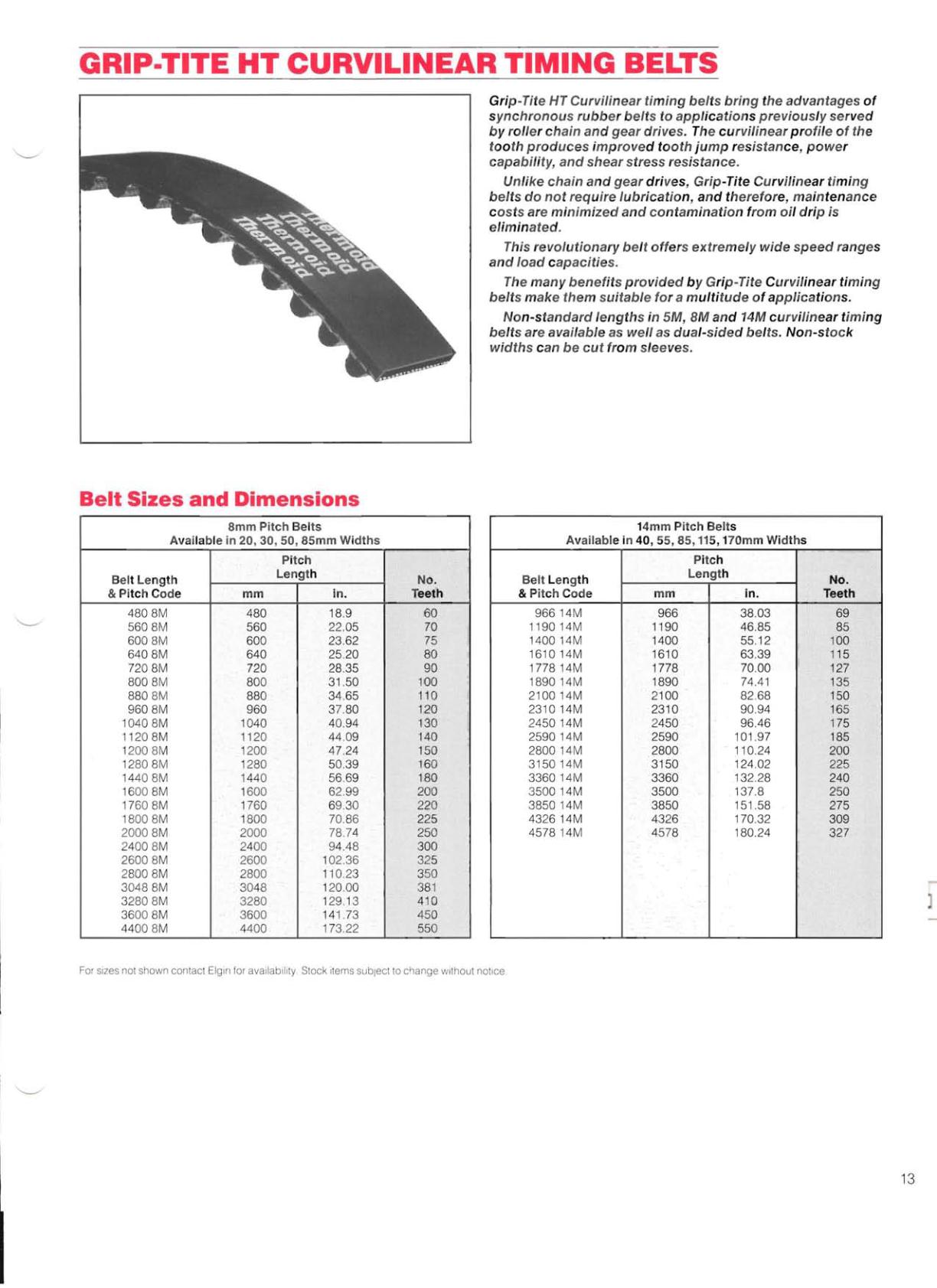

Page 13 - ThermoidPowerTransnmissionBeltsBrochure(HBDTHE-18770)

GRIP-TITE HT CURVILINEAR TIMING BELTS
Grip-Tite HT Curvilinear timing belts bring the advantages of
synchronous rubber belts to applications previously served
by roller chain and gear drives. The curvilinear profile of the
tooth produces improved tooth jump resistance, power
capability, and shear stress resistance.
Unlike chain and gear drives, Grip-Tite Curvilinear timing
belts do not require lubrication, and therefore, maintenance
costs are minimized and contamination from oil drip is
eliminated.
This revolutionary belt offers extremely wide speed ranges
and load capacities.
The many benefits provided by Grip-Tite Curvilinear timing
belts make them suitable for a multitude of applications.
Non-standard lengths in SM, 8M and 14M curvilinear timing
belts are available as well as dual-sided belts. Non-stock
widths can be cut from sleeves.
Belt Sizes and Dimensions
8mm Pitch Belts
Available in 20, 30, 50, 85mm Widths
Belt Length
& Pitch Code
Pitch
Length No.
Teeth mm in.
480 8M 480 18.9 60
560 8M 560 22.05 70
600 8M 600 23.62 75
640 8M 640 25.20 80
720 8M 720 28.35 90
800 8M 800 31.50 100
880 8M 880 34.65 110
960 8M 960 37.80 120
1040 8M 1040 40.94 130
11208M 1120 44.09 140
12008M 1200 47.24 150
12808M 1280 50.39 160
14408M 1440 56.69 180
16008M 1600 62.99 200
1760 8M 1760 69.30 220
1800 8M 1800 7086 225
2000 8M 2000 78.74 250
2400 8M 2400 94.48 300
2600 8M 2600 102.36 325
2800 8M 2800 110.23 350
30488M 3048 120.00 381
3280 8M 3280 129.13 410
3600 8M 3600 141.73 450
4400 8M 4400 173.22 550
14mm Pitch Belts
Available in 40, 55, 85, 115, 170mm Widths
Pitch
Belt Length Length No.
& Pitch Code mm in. Teeth
96614M 966 38.03 69
119014M 1190 46.85 85
1400 14M 1400 5512 100
161014M 1610 63.39 115
177814M 1778 70.00 127
189014M 1890 74.41 135
210014M 2100 82.68 150
231014M 2310 90.94 165
2450 14M 2450 96.46 175
2590 14M 2590 101.97 185
2800 14M 2800 110.24 200
315014M 3150 12402 225
3360 14M 3360 132.28 240
3500 14M 3500 137.8 250
3850 14M 3850 151.58 275
432614M 4326 17032 309
457814M 4578 180.24 327
For sizes not shown contact Elgin for availability Stock Items subject to change Without notice
