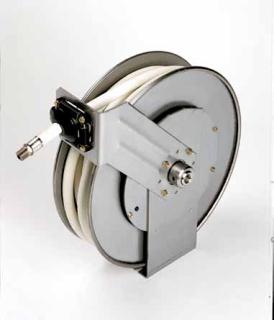

304 STAINLESS STEEL
Reels should be utilized in harsh environments, such as chemical clean up or when
an exceptionally clean area has to be maintained for food or beverage process. The latch mechanism is non-
sparking in the event flammable gases or liquids are present. Only available in low pressure.
CS Series
* Models without hose.
Hosetract Industries, LTD.
•
P: 260.489.8828
•
F: 260.489.6088
7
MADE IN THE U.S.A.
For 3/8” and 1/2” Hose I.D.
Air / Water application hose
White washdown hose
Chemical application hose
OPTIONS AVAILABLE
Reels shipped standard
sf hose payout position.
For ceiling mount add
suffix sc.
Inlet — 1/2” FPT Max. Temp. — 200°F
LOW PRESSURE ONLY
Model
Operating
Hose
Hose
Shipping
Number
Pressure
I.D.
Length
Weight
LCS-300*
1000 PSI
3/8 IN.
—
40#
LCS-340
300 PSI
3/8 IN.
40 Ft.
44#
LCS-350
300 PSI
3/8 IN.
50 Ft.
45#
LCS-370
300 PSI
3/8 IN.
70 Ft.
51#
LCS-500*
1000 PSI
1/2 IN.
—
41#
LCS-540
300 PSI
1/2 IN.
40 Ft.
50#
LCS-550
300 PSI
1/2 IN.
50 Ft.
56#
Mounting Slots
1/2” wide x 3/4” deep
for max 7/16” dia. bolt
6
1/2
18
18
3/4
5
3
