Page 7 - CF Catalog 2-10

9
FEMALE*
(socket x machined hose end)
Plated Steel
hose part list
size number each
2 BFGS-8 45.49
3 BFGS-12 49.55
4 BFGS-16 112.88
6 BFGS-24 236.67
8 BFGS-32 439.48
*Sold without SBR ring gasket listed below
MALE
(ball x machined hose end)
Plated Steel
hose part list
size number each
2 BMGS-8 45.09
3 BMGS-12 48.95
4 BMGS-16 107.64
6 BMGS-24 217.85
8 BMGS-32 410.30
LEVER
Galvanized Steel
hose part list
size number each
2 BLGS-8 26.35
3 BLGS-12 42.36
4 BLGS-16 67.15
6 BLGS-24 127.97
8 BLGS-32 210.67
RING GASKET
SBR
hose part list
size number each
2 BSG-8 4.35
3 BSG-12 5.27
4 BSG-16 6.05
6 BSG-24 12.15
8 BSG-32 16.42

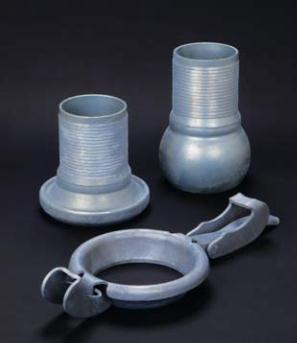

A
® BALL & SOCKET
COUPLINGS

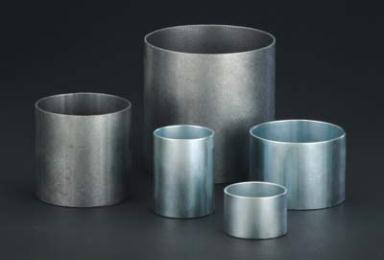

SLEEVES
Plated Steel
hose sleeve part list
size i.d. number each
1/2 1 SPS050100S 4.29
3/4 1-8/64 SPS075108S 4.45
3/4 1-20/64 SPS075120S 4.45
3/4 1-24/64 SPS075124S 4.45
1 1-28/64 SPS100128S 4.61
1 1-32/64 SPS100132S 4.61
1 1-36/64 SPS100136S 4.61
1 1-40/64 SPS100140S 4.61
1 1-44/64 SPS100144S 4.61
1 1-48/64 SPS100148S 4.61
1-1/4 1-40/64 SPS125140S 4.78
1-1/4 1-48/64 SPS125148S 4.78
1-1/4 1-52/64 SPS125152S 4.78
1-1/4 1-56/64 SPS125156S 4.78
1-1/2 1-60/64 SPS150160S 4.94
1-1/2 2 SPS150200S 4.94
1-1/2 2-4/64 SPS150204S 4.94
1-1/2 2-8/64 SPS150208S 4.94
1-1/2 2-12/64 SPS150212S 4.94
1-1/2 2-16/64 SPS150216S 4.94
1-1/2 2-20/64 SPS150220S 4.94
1-1/2 2-24/64 SPS150224S 4.94
2 2-8/64 SPS200208S 5.99
2 2-16/64 SPS200216S 5.99
2 2-24/64 SPS200224S 5.99
2 2-28/64 SPS200228S 5.99
2 2-32/64 SPS200232S 5.99
2 2-36/64 SPS200236S 5.99
2 2-40/64 SPS200240S 5.99
2 2-44/64 SPS200244S 5.99
2 2-48/64 SPS200248S 5.99
2 2-52/64 SPS200252S 5.99
2 2-56/64 SPS200256S 5.99
2 2-60/64 SPS200260S 5.99
2 3 SPS200300S 5.99
2-1/2 2-48/64 SPS250248S 7.79
2-1/2 2-56/64 SPS250256S 7.79
2-1/2 3 SPS250300S 7.79
2-1/2 3-8/64 SPS250308S 7.79
2-1/2 3-16/64 SPS250316S 7.79
2-1/2 3-24/64 SPS250324S 7.79
2-1/2 3-32/64 SPS250332S 7.79
SLEEVES
for medium machined shank couplings
continued on next page
