MALE & FEMALE
INSERT FITTINGS
Insert fittings are precision screw machined
in steel, stainless steel and brass.
Recommended use
• Low pressure air, water
Recommended hose attachment
• Brass Crimp-on Ferrules (Page 45)
• Worm Gear Clamps (Page 51)
• Preformed Band Clamps (Page 49)

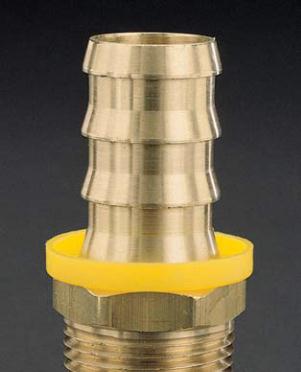

BRASS PUSH-ON FITTINGS

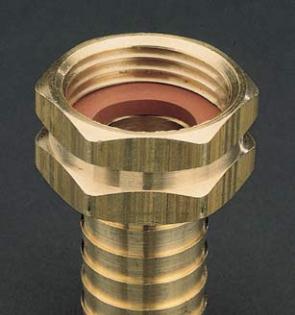

BRASS GARDEN HOSE
COUPLINGS
BRASS FERRULES
Brass ferrules are lightweight, easy to
assemble, and provide a smooth outer
surface.
Recommended use
• Crimp-on hose assemblies to secure
hose and fittings for low-pressure air
and water applications
Recommended use
• Low pressure air, water
Recommended hose attachment
• None. When used with special Push-on
Hose, no clamp or ferrule is needed. The
liner of the hose grabs securely onto the
barb of the fitting.
Precision screw machined from brass.
Available with short shank or long shank.
Recommended use
• Low pressure water
Recommended hose attachment
• Brass Crimp-on Ferrules (Page 45)
• Worm Gear Clamps (Page 51)
• Preformed Band Clamps (Page 49)
DO NOT use Push-on Fittings with
conventional hose.
H Small Diameter Multi-Purpose Fittings
