Page 33 - CF Catalog 2-10

FEMALE X FEMALE
npt part list
size number each
1/2 ADI-12 POR
3/4 ADI-34 POR
1 ADI-10 POR
MALE X MALE
npt part list
size number each
1/2 ADA-12 POR
3/4 ADA-34 POR
1 ADA-10 POR
FEMALE X DOUBLE
MALE (female 1" npt)
npt part list
size number each
1 X 3/4 DHA-10 POR
ADAPTER X HOSE END
Brass
hose part list
size number each
3/8 VCH-38 109.82
1/2 VCH-2 109.82
3/4 VCH-3 109.82
ADAPTER X MALE NPT
Brass
npt part list
size number each
3/8 VCM-38 104.73
1/2 VCM-2 105.74
3/4 VCM-3 106.68
ADAPTER X FEMALE NPT
Brass
npt part list
size number each
3/8 VCF-38 104.94
1/2 VCF-2 105.61
3/4 VCF-3 106.27
FEMALE END
Plated Steel
npt part list
size number each
3/8 TF-38 20.22
1/2 TF-2 21.91
3/4 TF-3 22.00
1 TF-4 23.95
GASKET
Nitrile
part list
size number each
ALL TGN-1 1.31

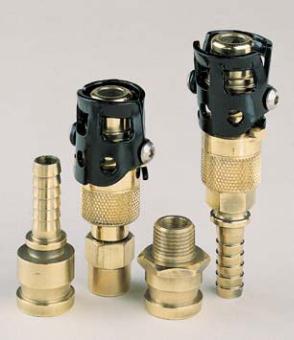

VALVE-LOCK X HOSE END
Brass
hose part list
size number each
3/8 VLH-38 255.49
1/2 VLH-2 255.92
3/4 VLH-3 257.96
VALVE-LOCK X MALE NPT
Brass
npt part list
size number each
3/8 VLM-38 256.74
1/2 VLM-2 256.07
3/4 VLM-3 257.96
VALVE-LOCK X FEMALE NPT
Brass
npt part list
size number each
3/8 VLF-38 253.05
1/2 VLF-2 255.72
3/4 VLF-3 257.50
VALVE-LOCK
COUPLINGS
35
DHA-10 has downstream venting.

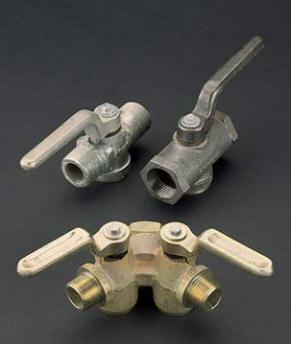

THROTTLE VALVES
E
®
FERRULES FOR AIR HOSE COUPLINGS
