HOSE END

Ductile Iron

(machined serrations)

hose

part

list

size

number

each

3/8

UH-38

9.76

1/2

UH-2

6.09

5/8

UH-58

9.31

3/4

UH-3

6.22

1

UH-4

8.20

Plated Steel

(investment cast)

1/2

UH-2i

3.82

3/4

UH-3i

4.48

1

UH-4i

5.43

Brass

(machined serrations)

3/8

UHB-38

–

1/2

UHB-2

15.14

5/8

UHB-58

–

3/4

UHB-3

17.08

1

UHB-4

22.26

316 Stainless

(machined serrations)

1/2

UHSS-2 53.21

3/4

UHSS-3 44.95

1

UHSS-4 49.68

HOSE END

(crimp specific)

Plated Steel

(investment cast)

hose

part

list

size

number

each

3/4

UH-3C 3.08

FEMALE NPT

Ductile Iron

npt

part

list

size

number

each

3/8

UF-38

8.42

1/2

UF-2

7.72

3/4

UF-3

7.26

1

UF-4

9.46

Brass

3/8

UFB-38

–

1/2

UFB-2

–

3/4

UFB-3

–

1

UFB-4

–

316 Stainless

1/2

UFSS-2 54.74

3/4

UFSS-3 47.75

1

UFSS-4 51.10

MALE NPT

Ductile Iron

npt

part

list

size

number

each

3/8

UM-38

8.42

1/2

UM-2

7.01

3/4

UM-3

7.45

1

UM-4

8.36

Brass

3/8

UMB-38 –

1/2

UMB-2

–

3/4

UMB-3

–

1

UMB-4

–

316 Stainless

1/2

UMSS-2 54.74

3/4

UMSS-3 47.45

1

UMSS-4 51.10

BLANK END

Ductile Iron

part

list

size

number

each

All

UB

11.84

Brass

All

UBB

–

THREE WAY

Ductile Iron

part

list

size

number

each

All

UTW 21.87

Brass

All

UTWB

–

UNIVERSAL WASHER

Nitrile

part

list

size

number

each

All

UG

0.64

Never use Universal Washers

in UniversaLock Couplings

SAFETY CLIP

part

list

size

number

each

All

SC

0.31

HOSE END

Ductile Iron

(machined serrations)

hose

part

list

size

number

each

1/2

ULH-2

23.20

3/4

ULH-3

23.20

1

ULH-4

23.20

MALE END

Ductile Iron

npt

part

list

size

number

each

1/2

ULM-2

23.20

3/4

ULM-3

23.20

1

ULM-4

23.20

FEMALE END

Ductile Iron

npt

part

list

size

number

each

1/2

ULF-2

23.20

3/4

ULF-3

23.20

UNIVERSALOCK WASHER

Nitrile

part

list

size

number

each

All

ULW 2.47

Never use UniversaLock Washers

in standard Universal Couplings

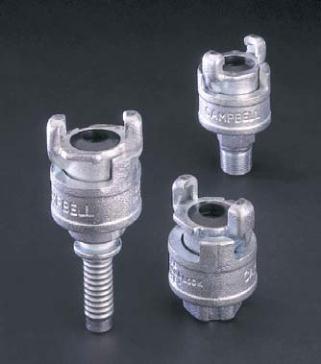

UNIVERSALOCK

™

COUPLINGS

TWO-BOLT

UNIVERSAL CLAMP

Ductile Iron

hose o.d.

part

list

min to max

no.

each

3/4 to 15/16

UC-2 6.74

1 to 1-1/4

UC-3 6.80

1-1/4 to 1-17/32 UC-4 11.75

E

®

DISTRIBUTOR AUTHORIZATION

Safety is of paramount concern to every-

one. Due to the volatile nature of com-

pressed air, and in accordance with our ISO

9000 quality system, we reserve the right

to restrict sales of our UniversaLock

®

Couplings to only those distributors autho-

rized by Campbell Fittings.

Please contact our customer service depart-

ment for more information.

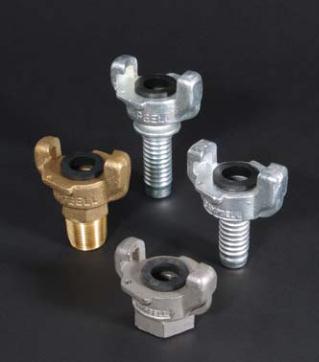

UNIVERSAL COUPLINGS
