Page 21 - CF Catalog 2-10

23
C
®

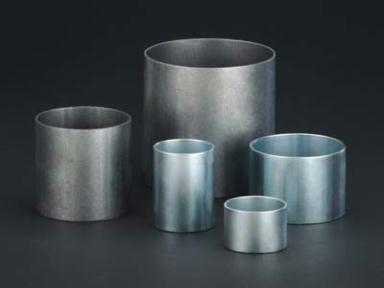

Plated Steel
hose sleeve part list
size i.d. number each
3/4 1-8/64 SPS075108 4.36
3/4 1-24/64 SPS075124 4.36
1 1-20/64 SPS100120 4.55
1 1-24/64 SPS100124 4.55
1 1-28/64 SPS100128 4.55
1 1-32/64 SPS100132 4.55
1 1-36/64 SPS100136 4.55
1 1-40/64 SPS100140 4.55
1 1-44/64 SPS100144 4.55
1 1-48/64 SPS100148 4.55
1-1/4 1-56/64 SPS125156 4.55
1-1/4 2 SPS125200 4.55
1-1/2 1-48/64 SPS150148 4.75
1-1/2 1-52/64 SPS150152 4.75
1-1/2 1-56/64 SPS150156 4.75
1-1/2 1-60/64 SPS150160 4.75
1-1/2 2 SPS150200 4.75
1-1/2 2-4/64 SPS150204 4.75
1-1/2 2-8/64 SPS150208 4.75
1-1/2 2-12/64 SPS150212 4.75
1-1/2 2-16/64 SPS150216 4.75
1-1/2 2-20/64 SPS150220 4.75
1-1/2 2-24/64 SPS150224 4.75
2 2-16/64 SPS200216 5.99
2 2-24/64 SPS200224 5.99
2 2-28/64 SPS200228 5.99
2 2-32/64 SPS200232 5.99
2 2-36/64 SPS200236 5.99
2 2-40/64 SPS200240 5.99
2 2-44/64 SPS200244 5.99
2 2-48/64 SPS200248 5.99
2 2-52/64 SPS200252 5.99
2 2-56/64 SPS200256 5.99
2 2-60/64 SPS200260 5.99
2 3 SPS200300 5.99
2 3-2/64 SSS200302 5.99
2-1/2 3 SPS250300 7.67
2-1/2 3-8/64 SPS250308 7.67
2-1/2 3-16/64 SPS250316 7.67
2-1/2 3-24/64 SPS250324 7.67
2-1/2 3-32/64 SPS250332 7.67
2-1/2 3-34/64 SPS250334 7.67
SLEEVES 3 3-16/64 SPS300316 10.59
3 3-24/64 SPS300324 10.59
3 3-28/64 SPS300328 10.59
3 3-32/64 SPS300332 10.59
3 3-36/64 SPS300336 10.59
3 3-40/64 SPS300340 10.59
3 3-44/64 SPS300344 10.59
3 3-48/64 SPS300348 10.59
3 3-52/64 SPS300352 10.59
3 3-56/64 SPS300356 10.59
3 4 SPS300400 10.59
3 4-2/64 SPS300402 10.59
4 4-16/64 SPS400416 14.26
4 4-24/64 SPS400424 14.26
4 4-32/64 SPS400432 14.26
4 4-36/64 SPS400436 14.26
4 4-40/64 SPS400440 14.26
4 4-44/64 SPS400444 14.26
4 4-48/64 SPS400448 14.26
4 4-52/64 SPS400452 14.26
4 4-56/64 SPS400456 14.26
4 4-60/64 SPS400460 14.26
4 5 SPS400500 14.26
4 5-2/64 SPS400502 14.26
6 6-16/64 SPS600616 37.39
6 6-24/64 SPS600624 37.39
6 6-32/64 SPS600632 37.39
6 6-40/64 SPS600640 37.39
6 6-48/64 SPS600648 37.39
6 6-56/64 SPS600656 37.39
6 7 SPS600700 37.39
6 7-8/64 SPS600708 37.39
6 7-16/64 SPS600716 37.39
6 7-24/64 SPS600724 37.39
8 8-32/64 SPS800832 87.02
8 8-48/64 SPS800848 87.02
8 9 SPS800900 87.02
8 9-16/64 SPS800916 87.02
8 9-32/64 SPS800932 87.02
304 Stainless
3/4 1-4/64 SSS075104 6.55
3/4 1-8/64 SSS075108 6.55
3/4 1-12/64 SSS075112 6.55
3/4 1-16/64 SSS075116 6.55
3/4 1-24/64 SSS075124 6.55
1 1-16/64 SSS100116 6.87
1 1-20/64 SSS100120 6.87
1 1-24/64 SSS100124 6.87
1 1-28/64 SSS100128 6.87
1 1-32/64 SSS100132 6.87
1 1-36/64 SSS100136 6.87
1 1-40/64 SSS100140 6.87
1 1-44/64 SSS100144 6.87
1 1-48/64 SSS100148 6.87
1-1/4 1-56/64 SSS125156 7.96
1-1/4 2 SSS125200 7.96
SLEEVES
for Standard or Campbell Cobra Parts C and E
continued on next page
