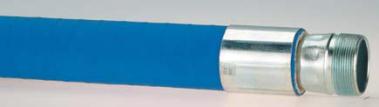

COMBINATION NIPPLES
AND MENDERS
Features & Benefits
• Maximum
number of
serrations for
maximum
holding power.
• Long lead
serration for
easier hose
insertion.
• Formed hex
wrench area
on 3/4” through
1-1/2” combina-
tion nipples for
easier installation.
Recommended Hose Attachment
• Sleeves (Section G)
• Preformed Bands (Section I)
Recommended Use
• Liquid, bulk handling, low-pressure air

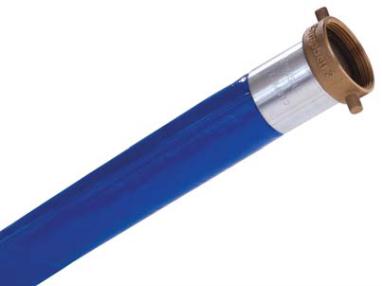

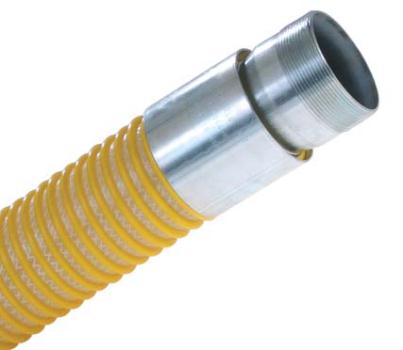

SUCTION HOSE COUPLINGS
Features & Benefits
• Maximum number of serrations for
maximum holding power.
• Long lead serration for easier hose insertion.
• Suction Couplings machined from pipe
eliminate porosity and parting lines,
improving sealing and retention.
Recommended Hose Attachment
• Sleeves (Section G)
• Preformed Bands (Section I)
Recommended Use
• Liquid, bulk handling
Manufacturing
Suction Hose
Couplings from
pipe eliminates
wide, flat mating
surfaces at
the male and
female halves.
CampbellCrimpnology™
offers crimping flexibility for
your multi-purpose hose
applications.

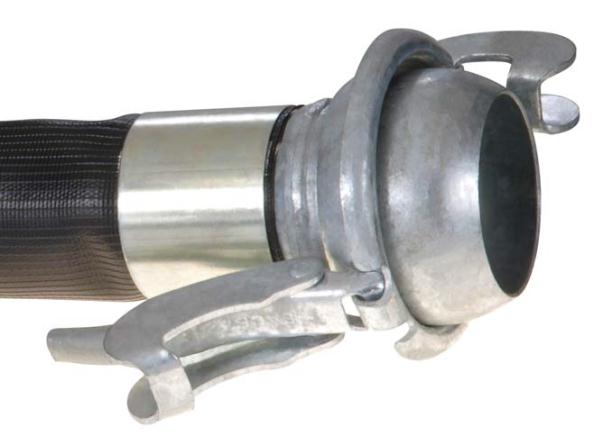

BALL & SOCKET COUPLINGS
Features & Benefits
• Proven, Campbell-style machined
hose shank is designed for crimping
(crimp specs available).
• Shank design dramatically improves sealing
and retention, cuts installation time in half.
• Hose shanks are welded to ball & socket
ball ends.
Recommended Hose Attachment
• Sleeves (Section G)
Recommended Use
• Water Suction/Discharge
• Sewage bypass
Combination Nipple Short Sleeve Rubber 400 350 300 275 250 225 210 200 175 150 100
Combination Nipple Short Sleeve Chemical 200 200 200 140 130 120 110 100 50 – –
Combination Nipple Short Sleeve PVC 150 125 100 90 85 65 60 55 40 30 20
Suction Coupling Short Sleeve Rubber – – – 275 250 225 210 200 175 150 100
Suction Coupling Short Sleeve PVC – – – 90 85 65 60 55 40 – –
Ball & Socket Coupling Sleeve Rubber – – – – – 300* – 250* 225* 140* 60*
Ball & Socket Coupling Sleeve PVC – – – – – 170* – 140* 100* 80* 50*
Hose System Components Hose Size
Fitting/Coupling Attachment Hose Type2 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 6 8
MAX. SYSTEM WORKING PRESSURE (PSI @ 70°F) SEE NOTE 1
See footnotes 1, 2, 3 and 6 on Page 1. *Ball & Socket safety factor is 1.5 x working pressure.

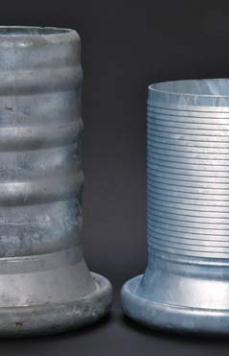

Bauer-style vs. Campbell
Ball & Socket
