Hose Fittings
Tri-Lokt® Hose Nipples
• BAND-IT's exclusive design of the Tri-Lokt® Hose Nipple is the answer for heavy
duty industrial hose applications.
• The Tri-Lokt® Nipple should be used when a positive lock is required between the
clamp and the nipple.
• The locking yoke or tie strip assembly together with the BAND-IT® clamp
accommodates the various wall thicknesses of different types of hoses.
Features:
• End barb provides excellent holding strength.
• Secure lock due to a unique yoke or tie strip assembly which is clamped to the hose.
• Low Profile.
• Ease of Installation.
Caution: Hose and nipples should never be operated in excess of the maximum
working pressure established by the hose manufacturer.
* Finish may be clear zinc or dichromate zinc plating on the carbon steel nipple.
Tri-Lokt® Swaged Machined
Material 316 SS Carbon Steel - Plated Carbon Steel - Plated 316 SS Carbon Steel - Plated
Diameter 1/2" - 6" 1-1/ 4" - 6" 1-1/2" - 4" 1/4" - 1-1/2" 1/4" - 1-1/2"
Corrosion Excellent Good Good Excellent Good
Hose ID Band Clamp Width
Inches mm Inches mm
1/2 to 5/8 13 to 16 3/8 or 1/2 6.35 or 12.70
3/4 to 1 1/2 19 to 38 1/2 to 3/4 12.70 to 19.05
2 to 6 51 to 152 3/4 19.05
Recommended Clamp Widths for the BAND-IT® Nipples shown in this catalog.
For maximum holding power BAND-IT recommends
the Ultra-Lok® Clamping System for use with all hose fittings.

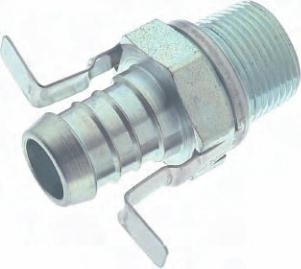

Tri-Lokt® Male
Hose Nipple

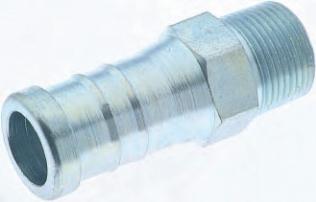

Machined Nipple

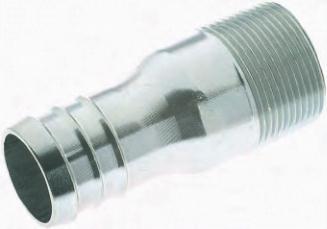

Swaged Male Hose
Nipple
