Page 16 - L table

C41399 317L 1/4 Hard SS 3/8 9.6 0.030 0.76 1290 300'/roll 11.9 5.3
C42499 317L 1/4 Hard SS 1/2 12.7 0.020 0.51 1160 300'/roll 10.2 4.6
C41499 317L 1/4 Hard SS 1/2 12.7 0.030 0.76 1725 300'/roll 15.9 7.2
C41599 317L 1/4 Hard SS 5/8 15.9 0.030 0.76 2150 300'/roll 19.9 9.0
C41699 317L 1/4 Hard SS 3/4 19.1 0.030 0.76 2580 300'/roll 23.9 10.8
These products available in Mill coil.
Width Thickness Breaking Package Package Weight Application
Part No. Material* In mm In mm Strength (lbs) Quantity Lbs Kg Tools
317L Band
Monel® 400 Band
Width Thickness Breaking Package Package Weight Application
Part No. Material* In mm In mm Strength (lbs) Quantity Lbs Kg Tools
C80399 Monel® 400 3/8 9.6 0.025 0.64 630 100'/roll 3.7 1.7 C00169
C80499 Monel® 400 1/2 12.7 0.030 0.76 1050 100'/roll 5.1 2.4 C00369
C80599 Monel® 400 5/8 15.9 0.030 0.76 1310 100'/roll 7.7 3.5 C40099
C80699 Monel® 400 3/4 19.1 0.030 0.76 1595 100'/roll 7.7 3.6 J02069=
Monel® 400 Buckle
Width Package Package Weight
Part No. Material* In mm Quantity Lbs Kg
C85399 Monel® 400 3/8 9.6 100/box 0.8 0.4
C85499 Monel® 400 1/2 12.7 100/box 2.1 1.0
C85599 Monel® 400 5/8 15.9 100/box 2.4 1.0
C85699 Monel® 400 3/4 19.1 100/box 3.7 1.7
All Purpose Band
Width Thickness Diameter of Hole Package Package Weight
Part No. Material* In mm In mm In mm Quantity Lbs Kg
AE4759 316 SS (coated) 1/2 12.7 0.050** 1.3** 3/16 5 82.5'/roll 3.1 1.4
AE4769 316 SS (coated) 3/4 19.1 0.050** 1.3** 9/32 7 82.5'/roll 5.3 2.4
AE4779 316 SS (coated) 1 25.4 0.050** 1.3** 5/16 8 82.5'/roll 7.3 3.3
AE4259 316 SS (uncoated) 1/2 12.7 0.030 0.76 3/16 5 82.5'/roll 3.1 1.4
AE4269 316 SS (uncoated) 3/4 19.1 0.030 0.76 9/32 7 82.5'/roll 4.6 2.1
AE4279 316 SS (uncoated) 1 25.4 0.030 0.76 5/16 8 82.5'/roll 5.5 2.5
**Material thickness includes PPA 551 coating - Base material thickness is 0.030".
Q-Band™
Width Thickness Package Package Weight Application
Part No. Material* In mm In mm Quantity Lbs Kg Tools
Q70499 White Plastic 1/2 12.7 0.030 0.76 100'/roll 0.8 0.3 Q72099
Q-Clip™
Width Package Package Weight
Part No. Material* In mm Quantity Lbs Kg
Q71499 White Plastic 1/2 12.7 25/box 0.2 0.1
Average
Average
= The J02069 tool can be used with 3/8" maximum width product.
= The J02069 tool can be used with 3/8" maximum width product.
C00169
C00369
C40099
J02069 =

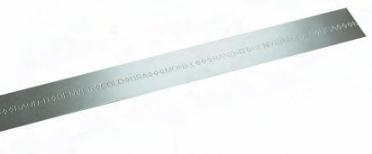

Monel ® 400 Band
All Purpose Band
Q72099 Q-Tool
Pipe Patches
Pipe Patches
Size Package Package Weight
Part No. Inches mm Form Quantity Lbs Kg
D05089 1 x 1 25 x 25 Flat 30/box 0.3 0.1
D05199 2 x 2 1/2 50 x 63 Curved 10/box 0.9 0.4
D05299 3 x 3 1/2 76 x 88 Curved 10/box 1.9 0.9
D05499 3 1/2 x 4 88 x 101 Curved 10/box 2.5 1.1
D05599 3 1/2 x 6 88 x 152 Curved 5/box 1.9 0.9
D05699 3 1/2 x 8 88 x 203 Curved 5/box 2.6 1.2
D05799 3 1/2 x 10 88 x 254 Curved 5/box 3.4 1.6
D05399 Pipe Patch Kit Contains: n/a Kit 3.4 1.6
1-D05089, 1-D05199, 1-D05299
Q70499 Q-Band™
*BAND-IT reserves the right to substitute material with equal or better corrosion resistance and/or mechanical specifications.
Q71499 Q-Clip™
16 303-320-4555
The Q-Band/Q-Clip plastic clamping system is ideal for hundreds of light-duty fastening applications.
Material Specification: polypropylene, U.V. Resistant, non-toxic, temperature range –30°F to +220°F
(–34°C to +104°C). UL Rated.
Metal backed patches lined with SBR compound function in a temperature range from
–50° to +225°F. Not recommended for use on toxic and caustic gas and liquid lines.
Monel ® 400
Ear-Lokt Buckle
Printed on recycled paper
