Page 14 - L table

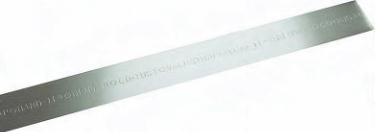

Valuband
Average Package
Width Thickness Breaking Package Weight Application
Part No. Material* In mm In mm Strength (lbs) Quantity Lbs Kg Tools
C14499 SS 1/2 12.7 0.025 0.64 1000 100'/roll 4.5 2.0
C14599 SS 5/8 15.9 0.025 0.64 1250 100'/roll 5.6 2.6
C14699 SS 3/4 19.1 0.025 0.64 1590 100'/roll 6.7 3.0
C14899 SS 1/2 12.7 0.025 0.64 1000 200'/roll 9.0 4.0
C14999 SS 5/8 15.9 0.025 0.64 1250 200'/roll 11.2 5.2
C15099 SS 3/4 19.1 0.025 0.64 1590 200'/roll 13.4 6.0
These products available in 300' rolls & Mill coil.
VALU-STRAP™
Average Package
Width Thickness Breaking Package Weight Application
Part No. Material* In mm In mm Strength (lbs) Quantity Lbs Kg Tools
C13199 SS 3/16 4.8 0.015 0.38 280 100'/roll 1.2 0.5
C13399 SS 3/8 9.6 0.015 0.38 450 100'/roll 2.2 1.0
C13499 SS 1/2 12.7 0.015 0.38 600 100'/roll 2.9 1.3
C13599 SS 5/8 15.9 0.015 0.38 750 100'/roll 3.6 1.7
C13699 SS 3/4 19.1 0.015 0.38 900 100'/roll 4.4 2.0
C12799 SS 3/8 9.6 0.015 0.38 450 200'/roll 4.4 2.0
C12899 SS 1/2 12.7 0.015 0.38 600 200'/roll 5.8 2.6
C12999 SS 5/8 15.9 0.015 0.38 750 200'/roll 7.3 3.2
C13099 SS 3/4 19.1 0.015 0.38 900 200'/roll 8.8 3.9
These products available in 300' rolls & Mill coil.
VALU-STRAP™ Plus
Average Package
Width Thickness Breaking Package Weight Application
Part No. Material* In mm In mm Strength (lbs) Quantity Lbs Kg Tools
C19199 SS 3/8 9.6 0.020 0.51 600 100'/roll 2.9 1.3
C18189 SS 1/2 12.7 0.020 0.51 850 100'/roll 3.8 1.7
C17199 SS 5/8 15.9 0.020 0.51 1000 100'/roll 5.6 2.6
C16189 SS 3/4 19.1 0.020 0.51 1275 100'/roll 5.7 2.5
C19399 SS 3/8 9.6 0.020 0.51 600 200'/roll 5.8 2.6
C18389 SS 1/2 12.7 0.020 0.51 850 200'/roll 7.6 3.4
C17399 SS 5/8 15.9 0.020 0.51 1000 200'/roll 11.2 5.2
C16389 SS 3/4 19.1 0.020 0.51 1275 200'/roll 11.4 5.0
Width Package Weight
Part No. Material* In mm Package Quantity Lbs Kg
C15199 SS 3/16 4.8 100/box 0.2 0.1
C15399 SS 3/8 9.6 100/box 0.6 0.3
C15499 SS 1/2 12.7 100/box 1.1 0.5
C15599 SS 5/8 15.9 100/box 1.2 0.5
C15699 SS 3/4 19.1 100/box 2.1 0.9
Valuclip
Stainless Steel Clip
Width Package Package Weight
Part No. Material* In mm Quantity Lbs Kg
C25299 SS 1/4 6.4 100/box 0.3 0.1
L15399 SS 3/8 9.6 100/box 0.9 0.4
L15499 SS 1/2 12.7 100/box 1.5 0.7
L15599 SS 5/8 15.9 100/box 1.8 0.8
L15699 SS 3/4 19.1 100/box 2.6 1.2
Average
Width Thickness Breaking Package Package Weight Application
Part No. Material* In mm In mm Strength (lbs) Quantity Lbs Kg Tools
C30399 GCS 3/8 9.6 0.025 0.63 700 100'/roll 3.3 1.6 C00169
C30499 GCS 1/2 12.7 0.030 0.76 1125 100'/roll 5.1 2.4 C00369
C30599 GCS 5/8 15.9 0.030 0.76 1405 100'/roll 6.4 3.0 C07569
C30699 GCS 3/4 19.1 0.030 0.76 1690 100'/roll 7.7 3.6 C08569,C40099
These products available in Mill coil.
Galvanized Carbon Steel Band
C00169
C00369
C07569
C08569
C40099
C00169
C00369
C07569
C08569
C40099
J02069=
C00169
C00369
C07569
C08569
C40099
J02069 =
C40099 Ratchet Tool
For product information
see page 13 .
C07569 Bantam Tool
For product information
see page 13.
Valuclip
VALU-STRAP™
Stainless Steel Clip
Galvanized Carbon
Steel Band
14 303-320-4555
Thriftool®
For product information
see page 13.
*BAND-IT reserves the right to substitute material with equal or better corrosion resistance and/or mechanical specifications.
The J02069 can be used with 3/8" maximum width product.
The J02069 can be used with 3/8" maximum width product.
