Pipe & HDPE
Aluminum
Pipe
Tech Tip
Wil-loc’s industrial-grade Galvanized and Aluminum Pipe is fully vacuum rated. Vacuum ratings
are dependent on the wall thickness of the pipe. For thinner walled pipe, vacuum relief valves
should be used to prevent pipe from collapsing.
Pipe & HDPE
Galvanized
Pipe
part number weight (lbs.) list price four inch galvanized pipe
4" x 6' Galvanized Pipe
4" x 10' Galvanized Pipe
4" x 20' Galvanized Pipe
220 P4-6
220 P4-10
220 P4-20
21.00
33.00
60.00
call
call
call
part number weight (lbs.) list price six inch galvanized pipe
6" x 3' Galvanized Pipe
6" x 6' Galvanized Pipe
6" x 10' Galvanized Pipe
6" x 20' Galvanized Pipe
220 P6-3
220 P6-6
220 P6-10
220 P6-20
28.00
35.00
55.00
93.00
call
call
call
call
part number weight (lbs.) list price eight inch galvanized pipe
8" x 3' Galvanized Pipe
8" x 6' Galvanized Pipe
8" x 10' Galvanized Pipe
8" x 20' Galvanized Pipe
220 P8-3
220 P8-6
220 P8-10
220 P8-20
43.00
52.00
78.00
120.00
call
call
call
call
part number weight (lbs.) list price ten inch galvanized pipe
10" x 10' Galvanized Pipe
10" x 15' Galvanized Pipe
10" x 20' Galvanized Pipe
All ten inch pipe has a-style couplings.
221 P10-10
221 P10-15
221 P10-20
63.00
165.00
209.00
call
call
call
part number weight (lbs.) list price twelve inch galvanized pipe
12" x 10' Galvanized Pipe
12" x 15' Galvanized Pipe
12" x 20' Galvanized Pipe
All twelve inch pipe has a-style couplings.
221 P12-10
221 P12-15
221 P12-20
173.00
225.00
278.00
call
call
call
part number weight (lbs.) list price three inch aluminum pipe
3" x 10' Aluminum Pipe
3" x 20' Aluminum Pipe
3" x 30' Aluminum Pipe
Custom lengths available upon request.
720 PA3-10
720 PA3-20
720 PA3-30
15.00
22.00
29.00
call
call
call
part number weight (lbs.) list price four inch aluminum pipe
4" x 10' Aluminum Pipe
4" x 20' Aluminum Pipe
4" x 30' Aluminum Pipe
Custom lengths available upon request.
720 PA4-10
720 PA4-20
720 PA4-30
24.00
35.00
46.00
call
call
call
part number weight (lbs.) list price six inch aluminum pipe
6" x 10' Aluminum Pipe
6" x 20' Aluminum Pipe
6" x 30' Aluminum Pipe
Custom lengths available upon request.
720 PA6-10
720 PA6-20
720 PA6-30
46.00
64.00
82.00
call
call
call
part number weight (lbs.) list price eight inch aluminum pipe
8" x 10' Aluminum Pipe
8" x 20' Aluminum Pipe
Custom lengths available upon request.
720 PA8-10
720 PA8-20
68.00
96.00
call
call

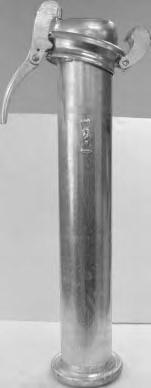

B-style galvanized pipe shown.

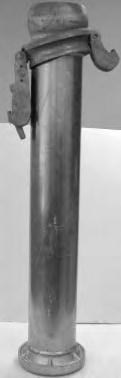

B-style aluminum pipe shown.
galvanized pipe specs.
4" Galvanized Pipe
6" Galvanized Pipe
8" Galvanized Pipe
10" Galvanized Pipe
12" Galvanized Pipe
4.25
6.00
8.00
10.00
12.00
I.D. Inches
0.059
0.059
0.059
0.079
0.079
Wall Inches
1.5
1.5
1.5
2.0
2.0
Wall Mill.
175
175
175
88
88
Max P.S.I.
30
30
30
30
30
Vacuum
Specifications to 1/8th of an inch • Specifications Subject to Change
aluminum pipe specs.
3" Aluminum Pipe
4" Aluminum Pipe
6" Aluminum Pipe
8" Aluminum Pipe
Cast Alum.
Cast Alum.
Cast Alum.
Cast Alum.
Fittings
3.00
4.00
6.00
8.00
I.D. Inches
0.065
0.072
0.083
0.090
Wall Mill.
290
175
175
175
Max P.S.I.
30
30
30
30
Vacuum
Specifications to 1/8th of an inch • Specifications Subject to Change
