ITEM SIZE CTN/CS A B C D
50672 1/2 10/80 1/2 2 3/8 2 5/8
50673 3/4 8/48 3/4 2 5/16 1/2 2 15/16
50674 1 8/48 1 2 7/8 1/2 3 1/8
50675 1 1/4 6/24 1 1/4 7/16 3/4 3 3/4
50676 1 1/2 4/24 1 1/2 3 7/16 3/4 4 1/16
50677 2 2/20 2 3 5/8 3/4 4 1/2
No. Description Quantity Material
1. BODY 1 FORGED BRASS (ASTM B283-C37700)
2. CAP 1 FORGED BRASS (ASTM B283-C37700)
3. SEATS 2 TEFLON® (PTFE)
4. BALL 1 BRASS/HARD CHROME PLATE
6. STEM SEAL 1 TEFLON® (PTFE)
7. PACKING GLAND 1 BRASS (ASTM B124-C37700)
8. LEVER HANDLE 1 ZINC w/EPOXY COATING
9. HANDLE SCREW 1 BRASS (ASTM B124-C37700)
10. CAP+CHAIN 1 BRASS (ASTM B124-C37700)
w/NBR HOSE WASHER
50672-50677
1
2
3 4
5 6 7 8
9
D
B
A
C
CxC x Hose
ITEM SIZE CTN/CS A B C D
40672 1/2 10/80 1/2 1 15/16 3/8 2 3/4
40673 3/4 8/48 3/4 2 15/16 1/2 3 1/16
40674 1 8/48 1 2 5/16 1/2 3 5/16
40675 1 1/4 6/24 1 1/4 2 7/8 3/4 4
40676 1 1/2 4/24 1 1/2 2 7/8 3/4 4 5/16
40677 2 2/20 2 3 3/4 4 3/4
No. Description Quantity Material
1. BODY 1 FORGED BRASS (ASTM B283-C37700)
2. CAP 1 FORGED BRASS (ASTM B283-C37700)
3. SEATS 2 TEFLON® (PTFE)
4. BALL 1 BRASS/HARD CHROME PLATE
5. STEM 1 BRASS (ASTM B124-C37700)
6. STEM SEAL 1 TEFLON® (PTFE)
7. PACKING GLAND 1 BRASS (ASTM B124-C37700)
8. LEVER HANDLE 1 ZINC w/EPOXY COATING
9. HANDLE SCREW 1 BRASS (ASTM B124-C37700)
10. CAP+CHAIN 1 BRASS (ASTM B124-C37700)
w/NBR HOSE WASHER
1
2
3 4
5 6 7 8
9
D
B
A
C
40672-40677
IPS x Hose
THE PRO-PAL® LINE
CAN IMPROVE THE QUALITY OF YOUR WORK BY…
10
40673

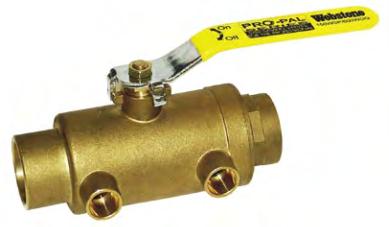

Forged Brass Tees with Hi-Flow Ball Valve Drain
(600WOG/150 ISP)
CHOOSE THE PRO-PAL ® SOLUTION FOR LIFE!
Choosing the PRO-PAL® series of valves is the best choice for cost, efficiency, operation and function. Check
the quality and compare them with traditional methods of building a plumbing system. You will find that there is
no comparison for the PRO-PAL® Series valves. These valves are so innovative that they even come with peace
of mind built-in because every Webstone product is covered by the Web Warranty. Simply stated; our products
are guaranteed for life or we will replace them free of charge. Choosing Webstone products for all of your
Plumbing needs is the smartest decision you will ever make.
So instead of just building your next piping system, why not
innovate it with Webstone PRO-PAL® Series Valves.
Teflon® is a registered trademark of Dupont. 50673
10
®
Phone: (800) 225-9529 Fax: (800) 336-5133 www.webstonevalves.com
PATENT PENDING
One Appian Way, Worcester, MA 01610
• Eliminating leak paths in the system
• Shortening installation time
• Providing cleaner looking installations that are
more functional
• Saving space in tight quarters with better flow
performance
• Eliminating multiple fittings with reduced ports
• Combining ease of installation with a higher
degree of quality in construction and function
• Versitile reversible handles
• Providing you with step saving valves
that are GUARANTEED FOR LIFE!
