1. BODY FORGED BRASS (ASTM B283-C37700)
2. END CAP FORGED BRASS (ASTM B283-C37700)
3. SEAT RETAINER BRASS (ASTM B124-C37700)
4. SEATS TEFLON® (PTFE)
5. BALL BRASS / HARD CHROME PLATE
6. STEM BRASS (ASTM B124-C37700)
7. STEM SEAL TEFLON® (PTFE)
8. PACKING GLAND BRASS (ASTM B124-C37700)
9. LEVER HANDLE C.P. STEEL
10. HANDLE NUT C.P. STEEL
11. HANDLE JACKET VINYL GRIP
C
D
F
E
A
B B
9
10
11
6
1 3 2
8
7
5
4
5865 SERIES & 5866 SERIES
FULL PORT FORGED BRASS BALL VALVES
PRIMARY/SECONDARY LOOP PURGE TEE
CxC w/REVERSIBLE HANDLE
(600 WOG/150 WSP) - ISO 9001
Designed for residential and commercial use in hydronic heating systems. This unique design allows for easy "power
purging" of each loop of the system while controlling "ghost flow" when the injection or circulator pump is off and
either the boiler pump or system pump is on. This approved WebstonePrimary/Secondary Loop Purge Tee features
smooth flow and virtually no distruption of flow and will utilize a hard chrome plated ball actuated by a blowout proof
stem sealed all around by Teflon® seats and seals and reinforced with an adjustable packing gland.
1. Solder ends comply with ANSI B16.18
2. Teflon® seats withstand temperatures
from -40°F to 400°F
3. Manufactured in an ISO 9001 Facility
PRESSURE RATING
600 WOG non-shock
150 WSP
PSI
600
500
400
300
200
Valve Seat Rating
200°F 300°F 400°F
all Teflon® seated valves
“Maximum Temperature is 400°F @ 100 PSI”
PRO-PAL® is a registered trademark of Webstone Company Inc.
Power purging a hydronic systemmade easy.
CREATE PROFESSIONAL LOOKING
INSTALLATIONS WITH WEBSTONE’S
PRO-PAL® SERIES VALVES
WHATEVER YOUR PROJECT, THERE IS

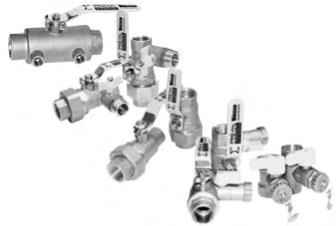

A PRO-PAL® SERIES VALVE TO MAKE IT EASIER:
PLUMBING SYSTEMS, HYDRONICS, RADIANT,
IRRIGATION, AND INDUSTRIAL APPLICATIONS.
Adding a PRO-PAL® valve will
shorten installation time, save space,
create less leak paths and make
future servicing easier than ever
before. Think about where you use
tees, unions, drain ports, cleanouts
or draw offs. Now add a Webstone
PRO-PAL® valve in those areas and
create a system that is better looking
and more efficient than ever before.
ITEM SIZE CTN/CS A B C D E F
58652 1 1/4 x 1/2 1/12 1 1/4 1/2 2 5/8 5 3/4 2 5/8 1 5/8
58653 1 1/4 x 3/4 1/12 1 1/4 3/4 2 7/8 6 5/16 2 5/8 1 13/16
58654 1 1/4 x 1 1/12 1 1/4 1 3 1/8 6 11/16 2 3/4 2
58655 1 1/4 x 1 1/4 1/12 1 1/4 1 1/4 3 1/4 7 7/16 2 5/8 1 7/8
58662 1 1/2 x 1/2 1/12 1 1/2 1/2 2 15/16 6 3/4 2 3/4 1 15/16
58663 1 1/2 x 3/4 1/12 1 1/2 3/4 3 1/8 6 13/16 2 3/4 2 1/16
58664 1 1/2 x 1 1/12 1 1/2 1 3 3/8 7 1/16 2 3/4 2 1/4
58665 1 1/2 x 1 1/4 1/12 1 1/2 1 1/4 3 5/8 7 1/2 2 5/8 2 1/4
Sizes are Primary Loop x Secondary Loop
These valves
are so innovative
that they even come
with peace of mind built-in.
PURGE TEE PRIMARY/SECONDARY
PATENT PENDING
