Page 11 - 18640 GC04 Cat Rev

11
®

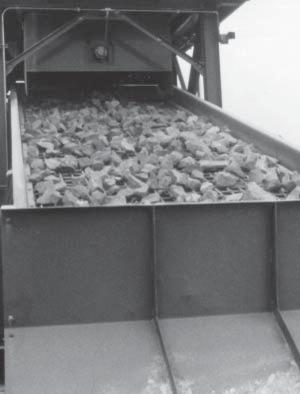

Conveyor systems today are moving faster
and carrying higher tonnage than ever before.
When these systems need drum pulleys
which exceed normal ANSI/CEMA service
factors, an XT-remeTM solution is required.

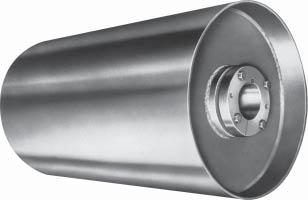

The VAN GORP ® XT-remeTM drum
pulley is designed with heavier end
discs than normal ANSI/CEMA
designed pulleys. They have been
designed for longer life with heavy end
discs (rigid design) to minimize end
disc stress due to shaft bending.
The XT-reme TM drum features the
VAN GORP® XT ® hub which is the
premier hub and bushing system
available for conveyor pulleys. The XT® hub
minimizes end disc pre-stress by using a
unique 2 inch per foot self locking taper. Less
pre-stress means that the XT-reme TM drumwill
run longer with less chance of down time than
with other types of conveyor pulleys.
The XT-reme TM drum is available in diameters
ranging from 10 to 60 and face widths to 76.
Many types of lagging are available including
SBR, Neoprene and Static Conductive
Neoprene.
XT-remeTM Drum Pulleys
XT-reme™ Drum
Pulley Diameter
Crown Face
Face Width
Hub Type and Size
DX 24 C 38 XT25
Part Number Example
