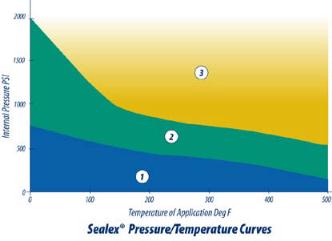

Graph Key:
(1) Suitable for gas and liquid
(2) Suitable for liquid only
(3) Refer to Thermoseal’s technical support service
Size selection/torques required to seal ANSI 150lb flanges
Nominal
Flange
Size (in)
Number
Bolts
(N)
Bolt
Size
(in)
*Approx.
Sealex
Length (in)
Suggested
Sealex Size
(in)
Sealing
Stress
(lbs/in)
Torque
(lb/ft)
1/2 4 0.5 4.3 3/16 1570 30
3/4 4 0.5 5.2 3/16 1570 30
1 4 0.5 6.2 3/16 1570 30
1-1/4 4 0.5 7.4 3/16 1570 30
1-1/2 4 0.5 8.3 1/4 2140 30
2 4 0.625 10.2 1/4 2140 60
2-1/2 4 0.625 12.2 1/4 2140 60
3 4 0.625 13.9 1/4 2140 60
4 8 0.625 17.9 3/8 2620 60
5 8 0.75 20.9 3/8 2760 100
6 8 0.75 24.1 3/8 2625 100
8 8 0.75 30.9 3/8 2625 100
10 12 0.875 37.9 3/8 2750 160
12 12 0.875 45.4 1/2 3000 160
* Based on mean sealing diameter
