Tuftex

®

Tuftex Type LSH-CB (Leaf Suction Hose) –

This corrugated bore hose

is produced using weather resistant and excellent abrasive resistant

rubber compounds which provide unequaled flexibility, ease of handling

and long trouble-free service life for a material handling hose.

Construction:

A.

Abrasive resistant rubber liner.

B.

Double-ply synthetic fabric reinforcement.

C.

Abrasive resistant rubber cover.

D.

Spring steel wire helix support.

Cyclone

®

The Cyclone line of ducting provides excellent service in applications requiring the conveying of large volumes of air

and fume control. It’s excellent for portable blower applications, temporary ship construction ventilation, welding

fume removal, utility manhole ventilation, portable heaters, and mobile vehicle air conditioning and heating units.

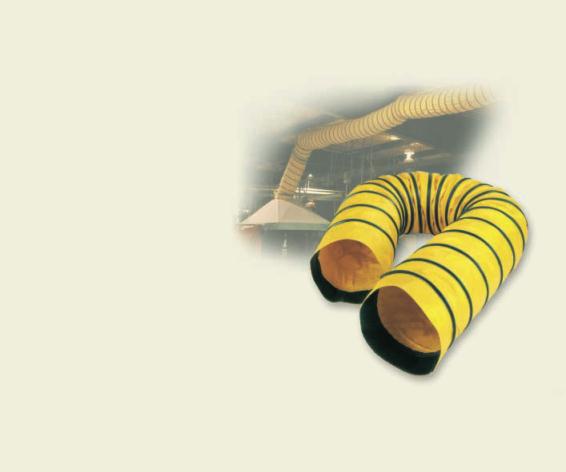

Cyclone Type UB –

This flexible ducting with its exceptional

compressibility (approx. 8 to 1) permits ease of storage

and handling. It maintains a smooth bore when

operating at working pressure. To protect the ducting

when being dragged over rough surfaces, a scuff

strip is included for added durability.

Inside Diameter (inches)

6

8

10

12

14

16

Approx. Weight (lbs./ft.)

3.6

4.2

6

8

10

12

Length Required for 90° Bend (inches)

16

18

22

27

31

39

Axial Tensile Strength

1000+ pounds

Temperature Range

-40°F to +250°F

Negative Pressure to Collapse (inches hg.)

27

20

17

Type UB Construction:

A.

Galvanized spring steel wire helix,

fully enclosed.

B.

Single ply vinyl coated polyester fabric.

C.

Thermoplastic scuff strip.

D.

Nylon thread stitching.

Type UB Technical Data:

Inside Diameter (inches):

5 to 30

Larger diameters available

upon request.

Operating Temp Range:

-40°F to +250°F

Standard Lengths:

10, 15 and 25 ft.

Longer lengths available.

Color:

Yellow with black helical wear strip.

*

Tuflex Type LSH-CB

is normally available in 20 foot lengths, however this product can be ordered in a range of diameter sizes and lengths.

*

Contact Customer Service for complete details.

800/543-8070

Fax 800/423-4354

www.hbdthermoid.com

18

Product information is subject to change. For full details, visit our website or contact Customer Service.
