Page 13 - GoodYear Rubber Products 1-866-711-4673 HBD Thermoid Inc

Standard Colors: Black
Sizes: 2" I.D. through 18 ".D.
Standard Length: 25 ft. (other lengths up to
50 ft. available upon request)
Temp. Range: -60°F to +275°F Continuous.
+300°F Intermittent
Features: Excellent flexibility and
compressibility characteristics;
can be used in both positive
and negative applications.
Applications: Venting systems for chemical
fumes; dust collection;
exhausting gases; air
movement.
Standard Colors: Blue
Sizes: 2" I.D. through 18" I.D.
Standard Length: 25 ft. (other lengths up to
50 ft. available upon request)
Temp. Range: -20°F to +180°F
Features: Excellent flexibility, good
abrasion resistance, good
chemical resistance, good
weathering characteristics.
Applications: Fume removal, ventilation,
dust collection, light material
handling internal cooling and
venting of computers.
Footnote: All pressure and vacuum data based on 72°F temperature.
Footnote: All pressure and vacuum data based on 72°F temperature.

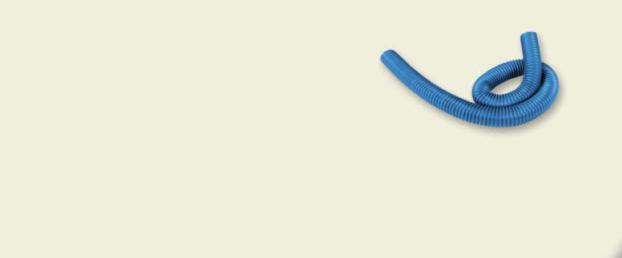

Ultraflex TPC – Type TPC consists of a thermoplastic polyvinyl
chloride (PVC) material reinforced with a spring steel wire helix. It is
an excellent economical choice for industrial applications that require
fume removal, ventilation, dust collection, etc.
Type TPR
Inside Diameter (inches) 2 4 6 8 10
Weight (lbs./ft.) .22 .75 .94 1.62 1.86
Inside Bend Radius 1/2 of I.D.
Burst (psig) 50 32 27 25 22
Working Pressure (psig) 17 11 9 8 7
Compressibility 65%
Temperature Range -60°F to +275°F, +300°F Intermittent
Max. Negative Pressure (in. hg.) 24 24 9 8 6
Type TPC
Inside Diameter (inches) 2 4 6 8 10
Weight (lbs./ft.) .17 .40 .59 .85 1.03
Inside Bend Radius 1/2 of I.D.
Burst (psig) 27 18 17 15 10
Working Pressure (psig) 9 6 5.5 5 3
Compressibility 75%
Temperature Range -20°F to +180°F
Max. Negative Pressure (in. hg.) 20 14 8 6 5

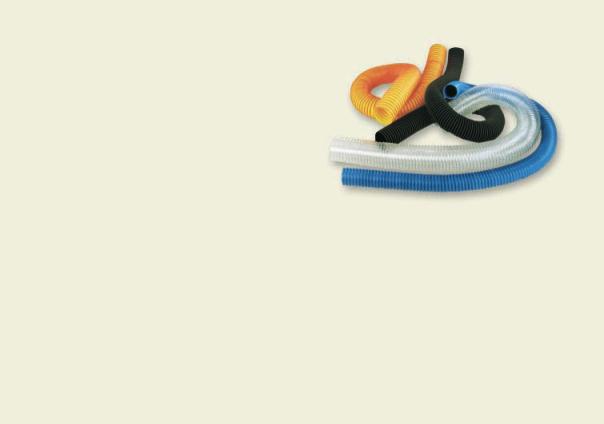

Ultraflex ®
The Ultraflex ducting line delivers high performance service to a wide
range of applications. The variety of thermoplastic materials makes
this line exceptionally versatile. Flexibility and compressibility
also make it ideal for many difficult, hard to handle applications
Its toughness, weatherability and resistance to chemicals and
abrasion allow it to take on the most demanding jobs.
Ultraflex TPR – Type TPR features a helical wire reinforced
thermoplastic rubber suitable for a wide variety of air
handling, fume control, and dust collection applications.
It offers good abrasion resistance, superior chemical
resistance, excellent ozone and weathering resistance, as well
as good resistance to flex fatigue. For additional wear resistance,
an orange vinyl wear strip on the O.D. is also available.
800/543-8070 Fax 800/423-4354 www.hbdthermoid.com
13
Product information is subject to change. For full details, visit our website or contact Customer Service.
