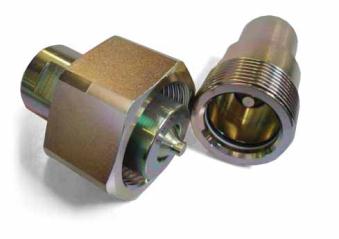

VLS Series
Heavy Duty Screw Coupler
Series: VLS
Heavy Duty Screw Coupler
Available in two sizes: 1/2 and 1 inch. The series VLS couplings
are mostly used on off highway applications and are a very rugged
design making them particularly well suited for use in construction
equipment under extreme conditions.
Overview
VLS series couplings are
particularly well suited for
heavy-duty service conditions.
The VLS coupler is a durable
product using heavy duty poppet
style valves for the sealing
mechanism and threads as the
mechanical connection.
Technical Characteristics
- Coupling body:
zinc plated steel
- Nipple is zinc plated
hardened steel
- Seals: Nitrile
- Anti-extrusion rings
are Teflon
- Internal components
designed to reduce
turbulence and handle
impulse applications
- Screw-on system
ensures connection
under residual pressure
DESCRIPTION SIZE
MAX. WORKING PRESSURE CONNECTED
MPa psi
VLS12 1/2 46.5 6744
VLS100 1 46.5 6744
COMING SOON
VLS Series
