HFX - Type HFX
Extruded Nitrile Rubber Attack/Supply Hose
Snap-tite HFX is a nitrile thru-the-weave, rubber covered fire hose that utilizes both
polyester and nylon yarn in the reinforcing jacket. Under pressure, the polyester
keeps the hose from “snaking” where the nylon allows for controlled dilation, reducing
friction loss and generating higher flow rates. Our special rubber compound provides
a tough cover that resists heat, abrasion, snags, and hot embers.
HFX’s unique extruded thru-the-weave construction provides a flexible, easy
to maneuver hose that is easy to pack. The interlocking matrix also means no
adhesives are used and there is a permanent bond to all the warp and weft yarns.
Properties and Construction
• HFX is an extruded thru-the-weave, nitrile rubber fire hose. The reinforcement
is made with a blend of circular woven, twill weave, polyester and nylon fibers.

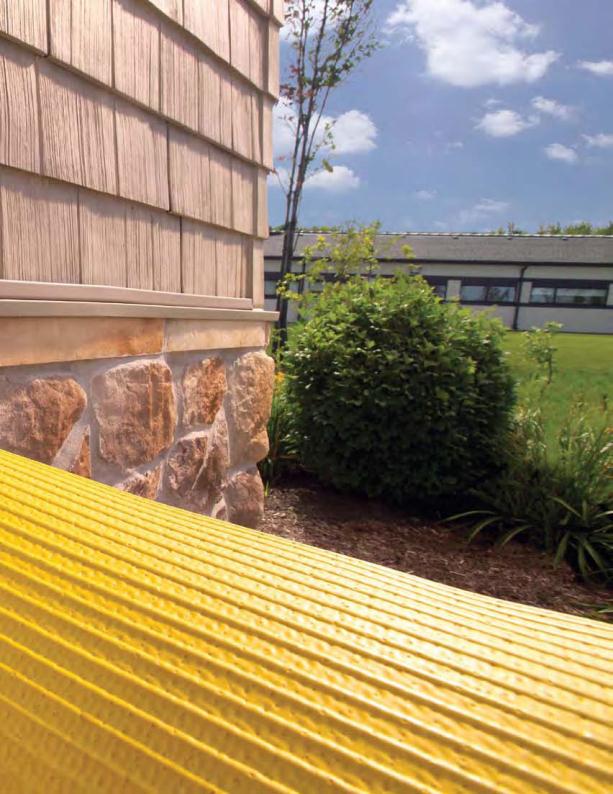

• The ribs on the cover surface greatly increase abrasion resistance and help
provide a long service life.
• Highly resistant to both contact and radiant heat.
• Hose remains flexible to temperatures as low as -5°F (-20°C) and is resistant
to ozone, oxidation, and most chemicals or petroleum products.
• Engineered for attack, supply, suction and relay applications.
• Snap-tite HFX is manufactured in accordance with NFPA standard 1961, latest
edition within our ISO-9001: 2000 certified quality assurance system.
TYPE HOSE HOSE COLOR COUPLING THREAD COUPLING OPTIONS
I.D. X LENGTH SIZE TYPE MATERIAL
Part Number Example: HFX40X50Y40S = HFX Hose, 4” ID by 50’ Length, Yellow, 4” Aluminum Storz Coupling
How to Order
HFX 40X50 Y 40 S
HFX 10 = 1” 50 = 50’ Y = Yellow 10 = 1” N = NH Blank= UL=UL
15 = 1-1/2” 100 = 100’ R = Red 15 = 1-1/2” I = IPT Aluminum Labeled
17 = 1-3/4” O = Orange 20 = 2” S = Storz
20 = 2” K = Black 25 = 2-1/2” BR=Brass UC=UL
25 = 2-1/2” 30 = 3” Rocker Lug Canada
30 = 3” 35 = 3-1/2” Labeled
40 = 4” 40 = 4” BP=Brass
50 = 5” 45 = 4-1/2” Pin Lug
60 = 6” 50 = 5”
60 = 6”
Polyester/Nylon
Fabric Reinforcement
Nitrile Rubber
Thru-the-Weave
Construction:
Extruded Nitrile Cover/Liner
Polyester/Nylon Reinforcement
Temperature Range:
-5° to 200°F (-20° to 95°C)
Couplings Available:
Aluminum or Brass NH/NST
or IPT Threaded & Aluminum
Storz options
Approvals:
Most sizes UL and ULC
(UL Canada) listed
Hose Colors:
ATTACK
SUPPLY
SOFT SUCTION
M-19
SIZE SERVICE PROOF BURST WEIGHT FLAT HOSE BED BOWL CERT.
TEST TEST (For 50’ Coupled) WIDTH Volume (100’) SIZE AVAIL.
PSI (kPa) PSI (kPa) PSI (kPa) LBS (KG) IN FT 3 IN
1” 300 (2070) 600 (4140) 900 (6200) 8 (3.6) 1.75 1.0 1-3/16
1-1/2” 300 (2070) 600 (4140) 900 (6200) 13 (5.9) 2.75 2.5 1-13/16 UL, UC
1-3/4” 300 (2070) 600 (4140) 900 (6200) 17 (7.7) 3.20 2.5 2-1/16 UL, UC
2” 300 (2070) 600 (4140) 900 (6200) 18 (8.1) 3.50 3.0 2-5/16 UL
2-1/2” 300 (2070) 600 (4140) 900 (6200) 26 (11.8) 4.25 3.5 2-13/16 UL, UC
3” 300 (2070) 600 (4140) 900 (6200) 33 (15) 5.00 4.5 3-5/16
4” 200 (1380) 400 (2760) 700 (4825) 45 (20.4) 6.50 5.5 4-5/16 UL, UC
5” 200 (1380) 400 (2760) 600 (4140) 53 (24) 8.20 7.0 5-5/16 UL, UC
6” 150 (1035) 300 (2070) 500 (3450) 67 (30.4) 9.75 12.0 6-5/16
LISTED
