Page 8 - banneredSnaptite Ind. Hose Catalog

High Pressure
Performance Features:

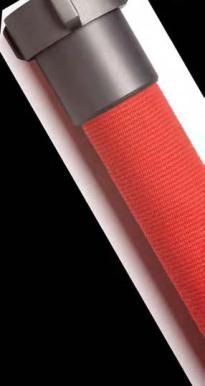

National 6P hose is a higher pressure hose that is tough enough to be
used for industrial frefghting. 6P is a polyester single jacket style
hose with an EPDM rubber liner that can also handle some chemicals
and petroleum based products. It has an operating pressure of
275 psi (1895 kPa) and can be treated with our optional Dura-Cote™
treatment for a higher level of heat and abrasion resistance.
SERVICE PROOF WEIGHT BOWL Certifcation
SIZE BURST
TEST TEST SIZE Available
Part Number Example: 6P20X50R15NBR = 6P Hose, 2” ID by 50’ Length, Red, 1-1/2” Brass Rocker Lug- NH/NST
Threaded Coupling
How to Order
6P 20X50 R 15 N BR
6P 10 = 1” 50 = 50’ Y = Yellow 10 = 1” N = NH Blank= FM=FM Labeled
15 = 1-1/2” 100 = 100’ R = Red 15 = 1-1/2” I = IPT Aluminum
20 = 2” W = White, 20 = 2”
25 = 2-1/2” (Uncoated) 25 = 2-1/2” BR= Brass Rocker Lug
BP=Brass Pin Lug
Mine Hose
Performance Features:

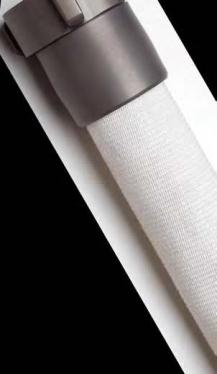

National 5M mine hose is a polyester single jacket hose with a
Neoprene rubber liner that resists burning inherently better than
exclusively hydrocarbon rubber. This is why MSHA has seen ft to
approve this hose for use in mines along with brass couplings that
are non-sparking. 5M hose is woven with a very tight weave to help
prevent the abrasion that can be attributed to this environment while
also helping to prevent kinking typically associated with cheaper
hoses. The hose can be used to a maximum operating pressure of
225 psi (1550 kPa).
(for 50’ coupled)
SERVICE PROOF WEIGHT BOWL
SIZE BURST
TEST TEST SIZE
TYPE HOSE HOSE COLOR COUPLING THREAD COUPLING
I.D. X LENGTH SIZE TYPE MATERIAL
Part Number Example: 5M15X50W15N = 5M Hose, 1-1/2” ID by 50’ Length, White, 1-1/2” Aluminum NH/NST
Threaded Coupling
How to Order
5M 15X50 W 15 N
5M 15 = 1-1/2” 50 = 50’ W = White 15 = 1-1/2” N = NH Blank=
20 = 2” 100 = 100’ (Uncoated) 20 = 2” I = IPT Aluminum
BR=Brass Rocker
Lug
BR=Brass Pin Lug
Construction:
Polyester Single Jacket
EPDM Rubber Inner Liner
Coating:
Optional DuraCote™
Temperature Range:
-40° to 150°F (-40° to 65°C)
Coupling:
Aluminum or Brass NH/NST or
IPT Threaded, Aluminum Storz
Approvals:
1-1/2” and 2-1/2” sizes are
FM approved
Hose Colors:
Construction:
Polyester Single Jacket
Neoprene Rubber Lining
with Rubber Backing
Temperature Range:
-40° to 150°F (-40° to 65°C)
Coupling:
Aluminum or Brass NH/NST
or IPT Threaded
Approvals:
Mine Safety & Health Association
(MSHA), Approval #2G-15-1
Hose Colors:
EPDM Rubber Liner
Polyester Single Jacket
APPROVED
Polyester Single Jacket Hose
Polyester Single Jacket Hose
(for 50’ coupled)
Operating Pressure not to Exceed 90% of Service Test Pressure
Neoprene Rubber Liner
Polyester Single Jacket
Rubber Backing
- Type 6P
- Type 5M
I -8
TYPE HOSE HOSE COLOR COUPLING THREAD COUPLING OPTIONS
I.D. X LENGTH SIZE TYPE MATERIAL
PSI (kPa) PSI (kPa) PSI (kPa) LBS KG IN
1-1/2” 250 (1725) 500 (3450) 750 (5170) 15 6.8 1-3/4
2” 250 (1725) 500 (3450) 750 (5170) 22 10 2-5/16
Operating Pressure not to Exceed 90% of Service Test Pressure
PSI (kPa) PSI (kPa) PSI (kPa) LBS KG IN
1” 300 (2070) 600 (4140) 900 (6200) 8 3.6 1-5/32
1-1/2” 300 (2070) 600 (4140) 900 (6200) 9 4.1 1-3/4 FM
2” 300 (2070) 600 (4140) 900 (6200) 14 6.4 2-5/16
2-1/2” 300 (2070) 600 (4140) 900 (6200) 19 8.5 2-13/16 FM
