Page 8 - Jabar Catalog Silicone2

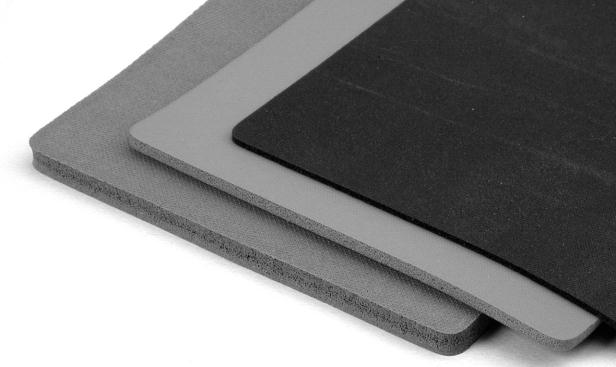

Closed cell sheet is manufactured to
AMS and MIL specification. Density can
be selected to meet specific
requirements for low closure load seals.
36" x 36" and 24" x 24" sheets in 1/16"
though 5/8" thickness standard in red,
and other colors are available upon
request. Most sizes and specifications in
stock for immediate delivery. Several
sizes are available in roll form as well.
FEATURES FOR
SILICONE SPONGE:
•High temperature capability,
standard for silicone.
•Easy compressibility for applications
requiring a lower closure sealing force
•Silicone sponge is closed cell,
minimizing water absorption.
Properties 3194 3195 3196
Compression Deflection (psi @ 75% original thickness) 12-20 6-14 12-20
Maximum Density (lbs./cu.in.) .030 .020 .030
Compression set (% original deflection, max.) 60% 60% 60%
Low Temperature Brittle Point (ºF) -130 -130 -100
AVAILABLE SPECIFICATIONS
AMS 3193, AMS 3194, AMS 3195,
AMS 3196, MIL R 46089,
ASTM D 1056, 2D2, 2D3,
SAE 3195 MIL C 3133, TE 7, TE 12
8 Já-Bar Silicone Corporation • Phone: 973. 786-5000 • Fax: 973. 786-6067 • www.JaBar.com
Rubber Sheets
Series 1100
SILICONE SPONGE SHEETS AMS SPECIFICATION
STANDARD SPONGE MOLDED SHEET SIZES
Dash No. Thickness Sheet Size
0101 .031 12" X 12"
0102 .062 12" X 12"
0103 .093 12" X 12"
0104 .125 12" X 12"
0105 .156 12" X 12"
0106 .188 12" X 12"
0107 .218 12" X 12"
0108 .250 12" X 12"
0109 .312 12" X 12"
0110 .375 12" X 12"
0111 .437 12" X 12"
0112 .500 12" X 12"
0113 .562 12" X 12"
0114 .625 12" X 12"
0115 .750 12" X 12"
0116 .875 12" X 12"
0117 1.00 12" X 12"
0118 1.250 12" X 12"
0119 1.500 12" X 12"
0120 1.750 12" X 12"
0121 2.00 12" X 12"
0122 .031 24" X 24"
0123 .062 24" X 24"
0124 .093 24" X 24"
0125 .125 24" X 24"
0126 .156 24" X 24"
0127 .188 24" X 24"
0128 .218 24" X 24"
0129 .250 24" X 24"
0130 .312 24" X 24"
0131 .375 24" X 24"
0132 .437 24" X 24"
Dash No. Thickness Sheet Size
0133 .500 24" X 24"
0134 .562 24" X 24"
0135 .625 24" X 24"
0136 .750 24" X 24"
0137 .875 24" X 24"
0138 1.00 24" X 24"
0139 1.250 24" X 24"
0140 1.500 24" X 24"
0141 1.750 24" X 24"
0142 2.00 24" X 24"
0143 .031 36" X 36"
0144 .062 36" X 36"
0145 .093 36" X 36"
0146 .125 36" X 36"
0147 .156 36" X 36"
0148 .188 36" X 36"
0149 .218 36" X 36"
0150 .250 36" X 36"
0151 .312 36" X 36"
0152 .375 36" X 36"
0153 .437 36" X 36"
0154 .500 36" X 36"
0155 .562 36" X 36"
0156 .625 36" X 36"
0157 .750 36" X 36"
0158 .875 36" X 36"
0159 1.00 36" X 36"
0160 1.250 36" X 36"
0161 1.500 36" X 36"
0162 1.750 36" X 36"
0163 2.00 36" X 36"
Thickness above .750” are laminated to the required height.
