Manufactured to ZZ-R-765, AA-59588,
applicable MIL, AMS and SAE standards.
Commercial grades available in
durometers FROM 10 to 85. Thicker
sheets, 2" and more are available special
order. Many sizes and specifications in
stock for immediate delivery.
AMS 3301 AMS 3326 Mil-R-5847
AMS 3302 AMS 3327 Mil-R-25988
AMS 3303 AMS 3345 Mil-R-83248
AMS 3304 AMS 3346 Mil-STD-417
AMS 3315 AMS 3347 ZZ-R-765 E/A-A-59588
AMS 3320 AMS 3356 ASTM D 2000-FK
AMS 3325 AMS 3357 ASTM D 2000- GE
ASTM D 2000-FC ASTM D 2000-FE ASTM D 2000-HK

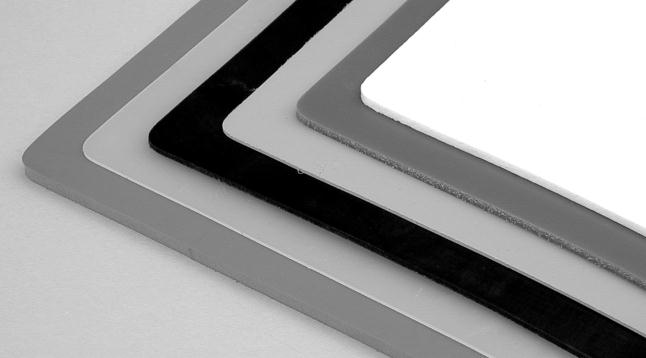

Rubber Sheets
Series 1100
Hardness Range from 10 durometer
Shore A to 85
Normal Available
Colors Red/Orange
Additional colors
available upon request
Grey; Tanslucent; White;
Black; Blue; and Brown
Custom color
matching Available on special order
STANDARD SHEET SIZES
SOLID ELASTOMERS SPECIFICATIONS
Dash No. Thickness Sheet Size
0101 .015 12" X 12"
0102 .031 12" X 12"
0103 .047 12" X 12"
0104 .062 12" X 12"
0105 .078 12" X 12"
0106 .093 12" X 12"
0107 .125 12" X 12"
0108 .156 12" X 12"
0109 .188 12" X 12"
0110 .218 12" X 12"
0111 .250 12" X 12"
0112 .281 12" X 12"
0113 .312 12" X 12"
0114 .375 12" X 12"
0115 .437 12" X 12"
0116 .500 12" X 12"
0117 .625 12" X 12"
0118 .750 12" X 12"
0119 1.000 12" X 12"
0120 1.250 12" X 12"
0121 1.500 12" X 12"
0122 .015 24" X 24"
0123 .031 24" X 24"
0124 .047 24" X 24"
0125 .062 24" X 24"
0126 .078 24" X 24"
0127 .093 24" X 24"
0128 .125 24" X 24"
0129 .156 24" X 24"
0130 .188 24" X 24"
0131 .218 24" X 24"
0132 .250 24" X 24"
Dash No. Thickness Sheet Size
0133 .281 24" X 24"
0134 .312 24" X 24"
0135 .375 24" X 24"
0136 .437 24" X 24"
0137 .500 24" X 24"
0138 .625 24" X 24"
0139 .750 24" X 24"
0140 1.000 24" X 24"
0141 1.250 24" X 24"
0142 1.500 24" X 24"
0143 .015 36" X 36"
0144 .031 36" X 36"
0145 .047 36" X 36"
0146 .062 36" X 36"
0147 .078 36" X 36"
0148 .093 36" X 36"
0149 .125 36" X 36"
0150 .156 36" X 36"
0151 .188 36" X 36"
0152 .218 36" X 36"
0153 .250 36" X 36"
0154 .281 36" X 36"
0155 .312 36" X 36"
0156 .375 36" X 36"
0157 .437 36" X 36"
0158 .500 36" X 36"
0159 .625 36" X 36"
0160 .750 36" X 36"
0161 1.000 36" X 36"
0162 1.250 36" X 36"
0163 1.500 36" X 36"
