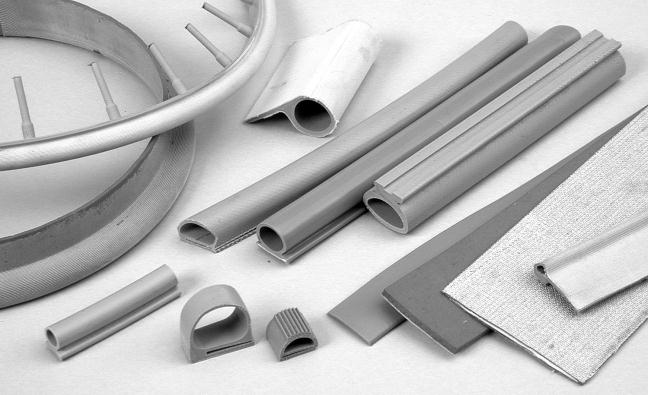

Seal Silicone Rubber
Series 1900
Ja-Bar Silicone Corporation is also a
source for extensive specialty custom
designed aerospace parts, focusing on a
wide variety of seals, ducting and
flexible connectors reinforced, and un-
reinforced.
Applications:
Conductive seals, mechanical, window,
inflatable, aerodynamic, firewall, door
and hatch, radar absorbing seals as well
as spliced seals.
• Seals can be manufactured from
silicone rubber and/or fluorosilicone
elastomers.
• Seals are designed for use on doors,
canopies, access panels, windows,
etc., even where large variations of
sealing surfaces are a consideration.
• These products can be reinforced
with fabric, fiberglass, wire, metal,
and may also be lined with teflon for
low friction surfaces.
Dimensions
(Inches) Above IncI. Tolerance +/- Dimension (Inches) Dimension (mm)
Above IncI. Tolerance +/-
0.0 - .10 .006 0 - 3/32 0.0 0.16
0.10 - 0.16 .01 3/32 - 5/32 2.5 - 4.0 0.25
0.10 - 0.25 .016 5/32 - 1/4 4.0 - 6.3 0.40
0.25 - 0.40 .025 1/4 - 13/32 6.4 - 10.0 0.63
0.40 - 0.63 .04 13/32 - 5/8 10.0 - 16.0 1.00
0.63 - 1.00 .06 5/8 - 1 16.0 - 25.0 1.60
Dimensions
(Inches) Above IncI. Tolerance +/- Dimension (Inches) Dimension (mm)
Above IncI. Tolerance +/-
0.0 - .10 .008 0 - 3/32 0 - 2.5 0.20
0.10 - 0.16 .013 3/32 - 5/32 2.5 - 4.0 0.32
0.10 - 0.25 .020 5/32 - 1/4 4.0 - 6.3 0.50
0.25 - 0.40 .032 1/4 - 13/32 6.4 - 10.0 0.80
0.40 - 0.63 .050 13/32 - 5/8 10.0 - 16.0 1.25
0.63 - 1.00 .080 5/8 - 1 16.0 - 25.0 2.00
1.00 & Over- Its is recommended that this tolerance be set after consultation with your fabricator.
Tolerance other than those listed may be reviewed to accommodate a particular application. CLASS 2
CLASS 1 1.00 & Over- its is recommended that this tolerance be set after consultation with your fabricator.
Rubber Manufacturers
Tolerance Guide
