FIGURE 2.1 - Rectangle stock cross-section
14 Já-Bar Silicone Corporation • Phone: 973. 786-5000 • Fax: 973. 786-6067 • www.JaBar.com

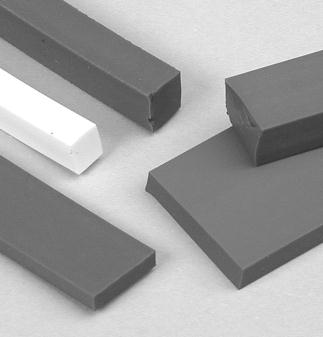

Rubber Rectangular Stock
Series 1200
Dash No. “A” “B”
0101 .062 .093
0102 .062 .125
0103 .062 .188
0104 .062 .250
0105 .062 .312
0106 .062 .375
0107 .062 .437
0108 .062 .500
0109 .062 .625
0110 .062 .687
0111 .062 .750
0112 .062 .812
0113 .062 .875
0114 .062 .937
0115 .062 1.00
0116 .062 1.125
0117 .062 1.188
0118 .062 1.250
0119 .062 1.375
0120 .062 1.500
0121 .062 1.750
0122 .062 2.00
0123 .062 2.50
0124 .062 3.00
0125 .062 3.50
0126 .062 4.00
0127 .062 5.00
0128 .062 6.00
0129 .093 .093
0130 .093 .125
0131 .093 .188
0132 .093 .250
0133 .093 .312
0134 .093 .375
0135 .093 .437
0136 .093 .500
0137 .093 .625
0138 .093 .687
0139 .093 .750
0140 .093 .812
0141 .093 .875
0142 .093 .937
0143 .093 1.00
0144 .093 1.125
0145 .093 1.188
0146 .093 1.250
0147 .093 1.375
0148 .093 1.500
0149 .093 1.750
0150 .093 2.00
0151 .093 2.50
0152 .093 3.00
0153 .093 3.50
0154 .093 4.00
0155 .093 5.00
0156 .093 6.00
0157 .125 .125
0158 .125 .188
Dash No. “A” “B”
0159 .125 .250
0160 .125 .312
0161 .125 .375
0162 .125 .437
0163 .125 .500
0164 .125 .625
0165 .125 .687
0166 .125 .750
0167 .125 .812
0168 .125 .875
0169 .125 .937
0170 .125 1.00
0171 .125 1.125
0172 .125 1.188
0173 .125 1.250
0174 .125 1.375
0175 .125 1.500
0176 .125 1.750
0177 .125 2.00
0178 .125 2.50
0179 .125 3.00
0180 .125 3.50
0181 .125 4.00
0182 .125 5.00
0183 .125 6.00
0184 .188 .188
0185 .188 .250
0186 .188 .312
0187 .188 .375
0188 .188 .437
0189 .188 .500
0190 .188 .625
0191 .188 .687
0192 .188 .750
0193 .188 .812
0194 .188 .875
0195 .188 .937
0196 .188 1.00
0197 .188 1.125
0198 .188 1.188
0199 .188 1.250
0200 .188 1.375
0201 .188 1.500
0202 .188 1.750
0203 .188 2.00
0204 .188 2.50
0205 .188 3.00
0206 .188 3.50
0207 .188 4.00
0208 .188 5.00
0209 .188 6.00
0210 .250 .250
0211 .250 .312
0212 .250 .375
0213 .250 .437
0214 .250 .500
0215 .250 .625
0216 .250 .687
We produce extrusion in silicone rubber
to MIL, AMS, ASTM, as well as federal or
commercial specifications. Standard dies
are available for a wide range of shapes
and sizes. Tooling for most round cord
and rectangular sizes, are in house,
eliminating the cost of tooling when
ordering.
TYPICAL APPLICATIONS:
Gaskets or seals, requiring high and low
temperature advantage
AVAILABLE SPECIFICATIONS
AMS 3301, AMS 3302, AMS 3303,
AMS 3304, AMS 3305, AMS 3307,
AMS 3308, MILR 5847, ZZ R 765,
A A 59588, ASTM D 2000, SAE 2000
