Characteristics:
• Manufactured with an inner liner made of PTFE tubing.
• Smooth inner surface covered with a 302L stainless steal wire helix braiding
encased between the inner and outer silicone layers.
• Metal fittings assembled on both ends.
• At times, the traditional elastomers are not compatible with overly
aggressive chemical products
Temperature range:
-50°C to +200°C (-58ºF to +392ºF)
Maximum pressure when used for steam:
12 bars/ 174 psi.
Maximum manufacturing length:
4.00 meters (13’).
8
Inner
diameter
(inch)
Inner
diameter
(mm)
Outer diameter
on the braiding
(mm)
3/16
4.76
8
18
35
200
600
1/4
6.35
10
18
50
180
480
5/16
7.95
11
19
60
150
450
3/8
9.5
13.2
22
90
130
390
1/2
12.7
16.1
24
100
100
300
5/8
15.8
20
28
120
90
270
3/4
19.05
23.1
31
150
70
210
1
25.4
29.2
39
250
60
180
Tube total
outer diameter
(mm)
Bending radius
mm
ISO 1746/1983
*(bar) @ 20°C
ISO 1402/1994
ISO 1402/1994
Working pressure
Bursting pressure
psi @ 68°F *(bar) @ 20°C psi @ 68°F

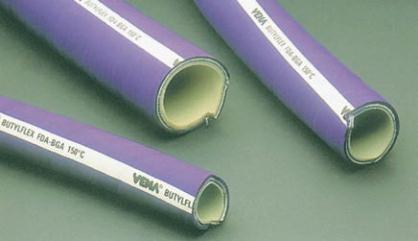

VENA BUTYLFOOD FLEXIBLE
Characteristics:
• Rubber tubes manufactured with food grade Butyl in accordance with FDA 21
CFR 177.2600.
• Equipped with textile reinforcements inside the wall of the tube, with 304 L
double stainless steel spring wire and copper braiding to ensure an equipotent
joint with the metal fittings and to protect from discharges of static electricity.
• Tubes with strong, durable construction that can withstand excessive physical handling.
• Operable with pressure or vacuum.
• Inner appearance:
White, smooth.
• Outer appearance:
Violet, smooth. Includes white information strip.
• Operating pressure:
10 bars/ 145 psi (all diameters)
• Bursting pressure:
30 bars/ 435 psi (all diameters)
• Maximum operating temperature:
-30°C to +120°C (-22ºF to +248ºF)
• Sterilization temperature:
150°C (302ºF)
Can be sterilized on-site by major Cleaning in Place (CIP) products.
Inner
diameter
(inch)
Inner
diameter
(mm)
Outer
diameter
(mm)
5/8
15.8
40
10
145
30
435
3/4
19.05
45
10
145
30
435
1
25.4
37
50
10
145
30
435
1 1/4
31.7
45
60
10
145
30
435
1 1/2
38.1
51
65
10
145
30
435
2
50.8
65
85
10
145
30
435
2 1/2
63.5
78
130
10
145
30
435
3
76.2
92
220
10
145
30
435
4
101.6
120
320
10
145
30
435
Bending
radius
(mm)
*(bar) @ 20°C
ISO 1402/1994
ISO 1402/1994
Working pressure
Bursting pressure
psi @ 68°F
*(bar) @ 20°C psi @ 68°F
• Maximum manufacturing length:
40 meters
• Major Applications:
The Butylfood flexible tube is
recommended for all types of food products, even at
high temperatures (milk, chocolate, drinking water, fruit
juice, fresh cream, oil, cosmetic cream, alcohol, etc.)
