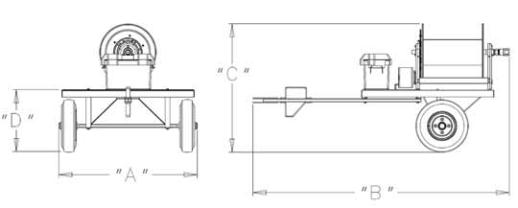

TRAILER DIMENSIONS
Trailer designed for off-road use only, not for passenger transport. Maximum
weight capacity 400 pounds. Maximum speed 15 miles per hour. Trailer, reel and
accessories sold separately.
TRAILER PACKAGES
PACKAGE ITEMS INCLUDED
600911
(1) 600810: Trailer
(1) CA37118 L: Hand rewind hose reel to
handle 100’ of 1” I.D. hose (hose not included)
(1) 600848-3: Roller Bracket, top wind
(1) 600829-10: 10’ Lead hose
600910
(1) 600810: Trailer
(1) EA37118 L 12D: Hose reel to handle
100’ of 1” I.D., without hose (12V DC Motor)
(1) S600808: Switch (complete)
(1) 600812: Battery box (battery not included)
(1) 600518: Chain guard
(1) 600848-3: Roller bracket, top wind
(1) 600226-3: Roller bracket, bottom wind
(1) 600829-10: 10’ Lead hose with 1” I.D.
1. Respond Faster
React quickly and easily,
reduce tangled hoses,
power-rewind hose
2. Reduce Turf Damage
Avoid turf wear and
damage from dragging
hoses
3. Save Labor, Save
Money
Save labor by improving
response time, reduce
hose wear by storing
on a reel
4. Enhance Existing
System
Provide quick supplemen-
tal irrigation to enhance
your existing system
5. Save Equipment
Eliminate the need for a
dedicated maintenance
vehicle
5 Five Key
Benefits
APPLICATIONS
• Golf Courses
• Athletic Fields/Sports Turf
• Pest Control
• Grounds Maintenance
• Agricultural
• Nurseries
• Hotels, Resorts
CAPACITY
1” ID x 100’ or
3/4” ID x 150’
water hose
Hand Crank and Motor Driven
Series 37000 - 3/4”, 1” I.D.
Hand Cart and Trailer Hose Caddy
Reelcraft’s Series 37000 reels are designed for grounds maintenance
applications requiring up to 1” I.D. x 100’ of hose and readily adapt
to indoor or outdoor applications. Series 37000 reels are designed
to fit on Reelcraft’s cart or trailer. Reels are shipped completely
assembled, ready to install. Installation instructions are included
with each reel. Trailer, reel and accessories sold separately.
39”
990mm
78”
1981mm
19”
482mm
44”
1066mm
Trailer #600810 shown (above) with reel model EA37118 L12D and accessories as follows:
operating switch, top and bottom roller guides, battery box, battery connector, chain guard,
10’ inlet hose and 1” I.D. by 100’ hose. Order reel and trailer package #600910.
Orchard Ridge Country Club, Fort Wayne, Indiana
S600808
Operating switch
600848-3
Top hose roller guide
600226-3
Bottom hose roller guide
600518
Chain guard
600812
Battery box (Battery not included)
600814
Battery cable connector
600829-100
Hose, 1” I.D. X 100’
1” NPT x 1” NPSH
601044-150
Hose, 3/4” I.D. X 150’
3/4” NPT x 3/4” NH
600829-10
Inlet hose, 1” I.D. X 10’
1” NPT x 1” NPSH
Reel and Trailer Package 600910
Reel and Trailer
600910 shown
with optional accessories
ADDITIONAL ACCESSORIES
