14
PHPCA1009
Includes “NEW”
KD100 Series Die Kages.
KD165-124-PHP System for
Piranha® Sewer Hose Fittings
PART NUMBER
DESCRIPTION
WEIGHT
Complete KuriKrimp™ KD165 System
For Piranha® Sewer Hose Fittings:
KD165-124-PHP
Complete System
165.0 lbs
KuriKrimp™ KD165 System Standard Dies for Piranha® Fittings:
KD100-14/YellowRK
Standard Die 14mmYellow
3.0 lbs
KD100-16/OrangeRK
Standard Die 16mm Orange
3.0 lbs
KD100-22/BlueRK
Standard Die 22mm Blue
3.0 lbs
KD100-27/BrownRK
Standard Die 27mm Brown
3.0 lbs
KD100-34/RedRK
Standard Die 34mm Red
3.0 lbs
PART NUMBER
DESCRIPTION
WEIGHT
KuriKrimp™ KD165 Crimper Without Dies:
KD165
Hose Crimper 60 Ton
140.0 lbs
KD165 Package and Components
Now available from Piranha is the KD165 crimping system.
This machine is capable of handling all of your assembly needs
for Jetting / Lateral Line hose, as well as standard Sewer hose
up to 1". This machine with its 60 ton press is built to get the
job done.
KD165 Specifcations:
• Dimensions
....................................................... L 22" XW 12.5" X H 22.25"
• Weight
........................................................................................ See Below
• Pump/Power
................................................................Electric 1 HP (110V)
• Reservoir
............................................................................................1 Gal.
• Oil Type
..................................................................... ISO Viscosity Grade 46
• Hose Capacity
........................................................ 1" Jetting / Lateral Line
...................................................................... 1" Standard Sewer

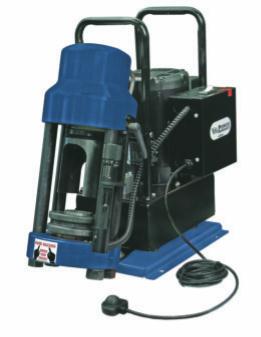

KD165 CrimperWithout Dies
NOTE:
THE USE OF FITTINGS AND ASSEMBLY TOOLING OTHER
THAN THAT SUPPLIED BY PIRANHA HOSE PRODUCTS IS AT THE RISK
AND LIABILITY OF THE USER.
FOR AVAILABILITY OF PRODUCTS AND SIZES SHOWN, PLEASE REFER TO THE BACK PAGE FOR YOUR NEAREST STOCKING LOCATION.
BECAUSEWE CONTINUALLY EXAMINEWAYS TO IMPROVE OUR PRODUCTS, WE RESERVE THE RIGHT TO ALTER SPECIFICATIONS OR DISCONTINUE PRODUCTSWITHOUT PRIOR NOTICE.
