Hydraulic Quick Couplings
B
Hydraulics
High Flow Couplings

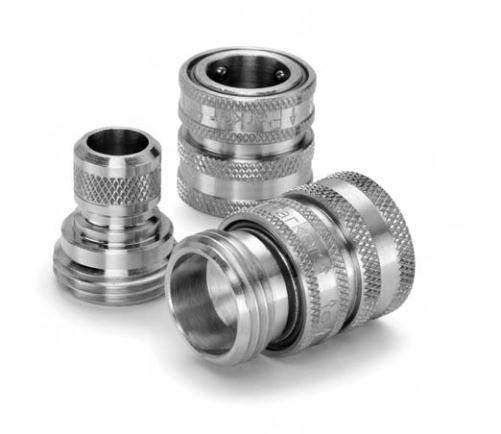

Water Service Series
Applications
Parker Water Service Couplings are used anywhere water
hoses are connected and disconnected frequently. They are
used on a wide variety of applications including garden
hoses, wash down systems, and mobile water tank lines. The
unvalved design permits maximum flow with minimum
pressure drop.
Coupler
Nipple
Features
• Brass and stainless steel construction for heavy duty
service.
• Durable 4-ball locking mechanism for secure connections.
• Quality, temperature-resistant Nitrile seals for a leak-free
service life.
A
C
D
E
Body
Part
Thread Size Overall Length Largest Diameter Wt. (LB.)
Size (in.)
No.
NH
A
C
P/Piece
3/4 1163-60 3/4-11 1/2
1.16
1.21
0.12
Body
Part
Thread Size Overall Length Exposed Length Wt. (LB.)
Size (in.)
No.
NH
D
E
P/Piece
3/4 1163-61 3/4-11 1/2
1.25
.50
0.08
Specifications
Body Size (in.)
3/4"
Rated Pressure (PSI)
200
Rated Flow (GPM)
28
Temperature Range (std seals)
-40°F to +250°F
