Hydraulic Quick Couplings
B
Hydraulics
Mold Coolant Line Couplings
Moldmate Series
3
1
2
4

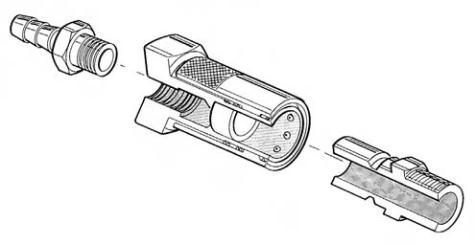

Features
1. Available with or without valves in the coupler. Non-valved
couplers have minimum flow resistance for maximum
cooling. Valved couplers shut off automatically upon
disconnect. Valved couplers can be used with either valved
or non-valved nipples. A valved nipple, however, must be
used with a valved coupler.
2. Nipples are designed to be recessed below mold surfaces
to provide more efficient storage of molds and prevent
damage to the nipple.
3. Widest choice of end fittings available, including straight,
45° or 90° with standard hose barb or Push-Lok barbs for
easy installation.
4. Couplers and nipples are made of corrosion resistant
brass, and valved couplers or valved nipple have a
Fluorocarbon O-ring on poppet and Silicone interface seal
as standard for use with water glycol type fluids commonly
used in heat transfer systems.
5. Silver colored sleeve designates valved coupler.
A
B
C
45 Degree
Couplers
Straight
A
C
B
Body Part No. Part No. Dimensions (in.)
Size Brass Wt. (LB.) Brass Wt. (LB.) Hose Overall Largest Overall Hex Largest
(in.) Non-valved P/Piece Valved P/Piece I.d. Length Diameter Length Size Diameter
Non-valved Valved
A C A B C
1/4 PC204 0.10 PC204AV 0.10 1/4 1.87 0.63 2.67 0.63 0.71
1/4 PC204-BP* 0.10 PC204AV-BP 0.10 1/4 1.89 0.63 2.52 0.63 0.71
1/4 PC205 0.09 PC205AV 0.10 5/16 1.87 0.63 2.67 0.63 0.71
1/4 PC206 0.09 PC206AV 0.10 3/8 1.87 0.63 2.67 0.63 0.71
1/4 PC206-BP* 0.11 PC206AV-BP 0.13 3/8 2.04 0.63 2.70 0.63 0.71
3/8 PC306 0.24 PC306V 0.27 3/8 3.01 0.96 3.17 0.88 1.01
3/8 PC306-BP* 0.26 PC306V-BP 0.29 3/8 3.15 0.96 3.31 0.88 1.01
3/8 PC308 0.25 PC308V 0.28 1/2 3.15 0.96 3.17 0.88 1.01
3/8 PC308-BP* 0.25 PC308V-BP 0.03 1/2 3.27 0.96 3.43 0.88 1.01
1/2 PC504 0.46 NA – 1/2 3.55 1.30 –
1/2 PC504-BP* 0.50 NA – 1/2 3.68 1.21 –
1/2 PC506 0.48 NA – 3/4 3.80 1.21 –
1/2 PC506-BP* 0.52 NA – 3/4 3.80 1.21 –
NA = Not Available
Body Part No. Part No. Dimensions (in.)
Size Brass Wt. (LB.) Brass Wt. (LB.) Hose Overall Hex Largest Overall Hex Largest
(in.) Non-valved P/Piece Valved P/Piece I.D. Length Size Diameter Length Size Diameter
Non-valved Valved
A B C A B C
1/4 PC224 0.13 PC224AV 0.13 1/4 2.67 0.56 0.71 2.87 0.63 0.71
1/4 PC224-BP* 0.13 PC224AV-BP 0.14 1/4 2.57 0.56 0.71 2.77 0.63 0.71
1/4 PC226 0.13 PC226AV 0.14 3/8 2.71 0.56 0.71 2.91 0.63 0.71
1/4 PC226-BP* 0.26 PC226AV-BP 0.17 3/8 2.74 0.56 0.71 2.94 0.63 0.71
3/8 PC326 0.36 PC326V 0.36 3/8 3.65 0.88 0.96 3.65 0.88 1.01
3/8 PC326-BP* 0.34 PC326V-BP 0.36 3/8 3.75 0.88 0.96 3.75 0.88 1.01
3/8 PC328 0.36 PC328V 0.36 1/2 3.69 0.88 0.96 3.69 0.88 1.01
3/8 PC328-BP* 0.34 PC328V-BP 0.40 1/2 3.88 0.88 0.96 3.88 0.88 0.96
1/2 PC524 0.74 NA – 1/2 4.18 1.12 1.21 –
1/2 PC524-BP* 0.78 NA – 1/2 4.28 1.12 1.21 –
1/2 PC526 0.76 NA – 3/4 4.56 1.12 1.21 –
1/2 PC526-BP* 0.80 NA – 3/4 4.56 1.12 1.21 –
* Suffix BP in part number denotes Push-Lok hose barb. Without suffix denotes standard hose barb.
Push-Lok hose barbs are designed for use with Parker Push-Lok hose and do not require clamps.
Valved Couplers can be used with either non-valved or valved nipples.
