Pneumatic Quick Couplings
A
Pneumatics
Industrial Interchange Nipples
D
E
G
F
Female Pipe Thread Body Part Part Part No. Thread Dimensions (in.)
Size No. No. Type 303 Size Overall Exposed Hex Largest Wt. (LB.)
(in.) Brass Steel Stainless NPTF Length Length* Size Diameter P/Piece
D E F G
1/4 – H1C – 1/8-27 1.48 0.71 0.50 0.58 0.03
1/4 BH3C H3C SH3C 1/4-18 1.56 0.80 0.62 0.72 0.05
1/4 – H3C-E SH3C-E 3/8-18 1.60 0.83 0.81 0.94 0.08
3/8 – H1E – 1/4-18 1.60 0.69 0.62 0.72 0.06
3/8 BH3E H3E – 3/8-18 1.69 0.74 0.81 0.94 0.10
3/8 – H3E-F – 1/2-14 1.84 0.90 1.00 1.16 0.13
1/2 – H1F – 3/8-18 2.03 0.79 0.81 0.94 0.12
1/2 BH3F H3F – 1/2-14 2.20 0.96 1.00 1.16 0.19
1/2 – H3F-G – 3/4-14 2.30 1.05 1.25 1.44 0.26
3/4 – H3G-F – 1/2-14 2.22 1.06 1.00 1.16 0.23
3/4 – H3G – 3/4-14 2.18 1.02 1.25 1.44 0.34
3/4 – H3G-J – 1-11 1/2 2.41 1.25 1.63 1.80 0.47
*This dimension represents portion of nipple that is exposed when nipple is inserted in a Parker 20 Series coupler.

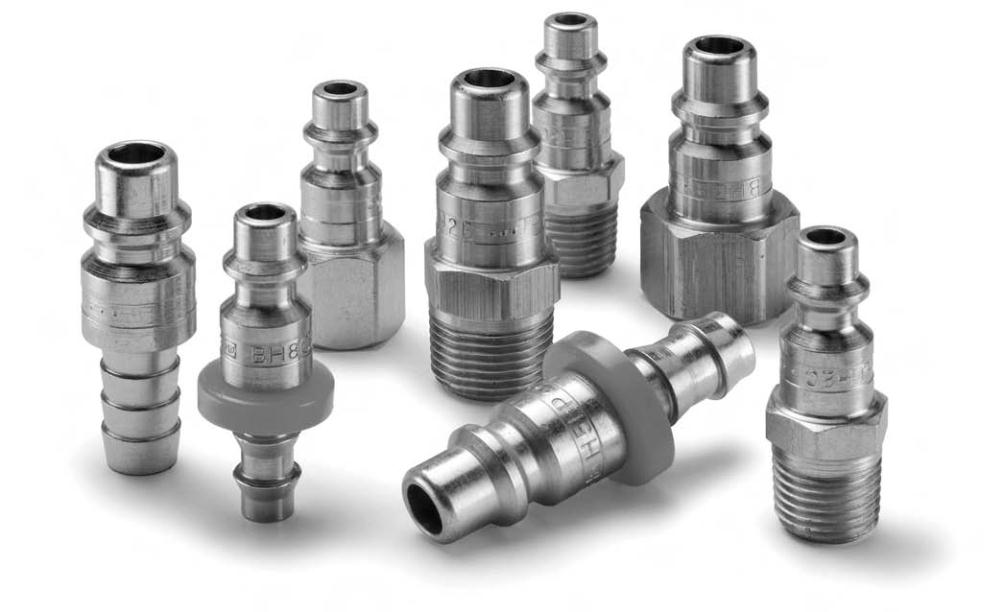

Features
• Parker Industrial Interchange nipples are for use with any
Parker 20 Series, HF Series, 30 Series, Universal, HF or E-
z-mate couplers.
• Parker Industrial Interchange nipples are interchangeable
with similar nipples manufactured by other quick coupling
manufacturers conforming to A-A-59439 (formerly known
as MIL-C-4109F), ANSI/(NFPA) T3.20.14-1990, or
ISO6150-B requirements.
• Hardened wear points** and solid barstock construction
provide extended service life.
• Precision machined surfaces and hardened load-bearing
areas** resist the effects of mechanical shock in the most
rugged applications.
• The 20 Series, HF Series, 30 Series, Universal and
E-z-mate couplers that mate with the Industrial Interchange
nipples are located in their respective coupling “Type” (e.g.
Manual Type) as noted in the Table of Contents.
** steel nipples only
