Quick Coupling Division
8145 Lewis Road • Minneapolis, MN 55427
www.parker.com/quickcouplings B-29
Hydraulic Quick Couplings
B
Hydraulics
Non-Spill Couplings

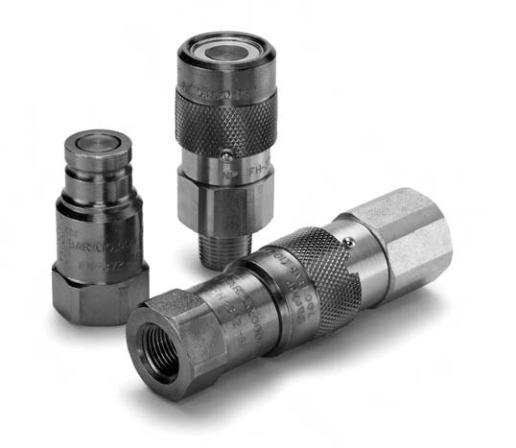

FH Series
Features
• 10,000 PSI operating pressure (700 bar).
• Flush face, non-spill valving, both halves.
• Sleeve on coupler and nipple body have a RED finish for
identification purposes.
• Simple Push-To-Connect operation.
• Sleeve-Lock to prevent accidental disconnect.
• Non interchangeable with low pressure flush face couplings.
• Meets performance and dimensional specifications of
HTMA requirements, 10,000 PSI (700 bar).
• Anti Blow-Out Nitrile/PTFE bonded nipple seal.
Applications
• Hydraulic Crimpers, Cutters, Jacks, Benders, Clamps,
Wedges
• Rescue Equipment
• High Pressure Test Equipment
Note: Protective dust plugs and caps play a crucial role in the
life of a quick coupling and no purchase of a hydraulic quick
coupling is complete without the selection of an appropriate
dust plug and cap. See pages noted in Table of Contents for
dust plugs and caps for the Parker full line of hydraulic
couplings.
Performance
FH Series (3/8")
Test Fluid: Oil - 200 SUS
0
5
10
15
20
25
30
35
40
45
0 1 2 3 4 5 6 7 8 9
Flow in USGPM
Pressure Drop in PSID
3/8"
Description
Parker FH Series high pressure couplings are an innovative
product combining the advantages of a flush-face design with
a highly technical performance of a rated pressure of 10,000
PSI. For safety purposes, this product does not interchange
with flush-face couplings having a lower pressure rating.
Specifications
Body Size (in.) 3/8
Rated Pressure (PSI) 10,000
Rated Flow (GPM) 6
Temperature Range -40° to +250° F
Spillage (ML) .020
(max. per disconnect)
Air Inclusion (ML) .070
(max. per connect)
Materials of Construction
Body: Steel
Finish: Chromium-6 Free plating
Valve: Flush Face Valves
Seal: Anti blow-out Nitrile/PTFE bonded seal
( nipple only)
